NJM12884DL3-18-TE1

Active

Nisshinbo Micro Devices Inc

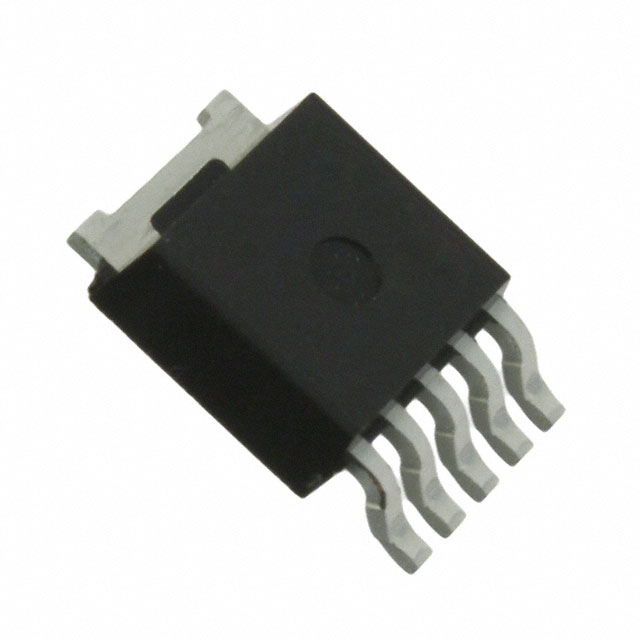

IC REG LINEAR 1.8V 500MA TO252-5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NJM12884DL3-18-TE1

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 1.8V 500MA TO252-5

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NJM12884DL3-18-TE1	NJM12884 Series

Control Features	Soft Start, Enable	Soft Start, Enable
Current - Output	500 mA	500 mA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	TO-252-6, DPAK (5 Leads + Tab)	SOT-89-5/6, TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Over Current, Reverse Current, Over Temperature	Over Current, Reverse Current, Over Temperature
PSRR	74 dB	68 - 76 dB
Supplier Device Package	TO-252-5	SOT-89-5, TO-252-5
Voltage - Input (Max) [Max]	6.5 V	6.5 V
Voltage - Output (Min/Fixed)	1.8 V	1.5 - 5 V
Voltage Dropout (Max)	-	0.18 V

NJM12884 Series

500MA FIXED 5V POSITIVE ELECTRODE 6.5V SOT-89-5 VOLTAGE REGULATORS - LINEAR, LOW DROP OUT (LDO) REGULATORS ROHS

Part	Package / Case	Voltage - Input (Max) [Max]	Number of Regulators	Current - Output	Supplier Device Package	Control Features	Output Type	Output Configuration	Protection Features	Mounting Type	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	PSRR
Nisshinbo Micro Devices Inc NJM12884U2-05-TE1	SOT-89-5/6	6.5 V	1	500 mA	SOT-89-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount	0.18 V	125 °C	-40 °C	5 V
Nisshinbo Micro Devices Inc NJM12884U2-18-TE1	SOT-89-5/6	6.5 V	1	500 mA	SOT-89-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount		125 °C	-40 °C	1.8 V	74 dB
Nisshinbo Micro Devices Inc NJM12884DL3-15-TE1	TO-252-6, DPAK (5 Leads + Tab)	6.5 V	1	500 mA	TO-252-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount		125 °C	-40 °C	1.5 V	76 dB
Nisshinbo Micro Devices Inc NJM12884DL3-05-TE1	TO-252-6, DPAK (5 Leads + Tab)	6.5 V	1	500 mA	TO-252-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount	0.18 V	125 °C	-40 °C	5 V
Nisshinbo Micro Devices Inc NJM12884U2-15-TE1	SOT-89-5/6	6.5 V	1	500 mA	SOT-89-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount		125 °C	-40 °C	1.5 V	76 dB
Nisshinbo Micro Devices Inc NJM12884DL3-18-TE1	TO-252-6, DPAK (5 Leads + Tab)	6.5 V	1	500 mA	TO-252-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount		125 °C	-40 °C	1.8 V	74 dB
Nisshinbo Micro Devices Inc NJM12884DL3-25-TE1	TO-252-6, DPAK (5 Leads + Tab)	6.5 V	1	500 mA	TO-252-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount	0.18 V	125 °C	-40 °C	2.5 V	71 dB
Nisshinbo Micro Devices Inc NJM12884U2-25-TE1	SOT-89-5/6	6.5 V	1	500 mA	SOT-89-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount	0.18 V	125 °C	-40 °C	2.5 V	71 dB
Nisshinbo Micro Devices Inc NJM12884U2-33-TE1	SOT-89-5/6	6.5 V	1	500 mA	SOT-89-5	Enable, Soft Start	1.81 mOhm	Positive	Over Current, Over Temperature, Reverse Current	Surface Mount	0.18 V	125 °C	-40 °C	3.3 V	68 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.37
		6000	$ 0.35
		15000	$ 0.33
		30000	$ 0.32

Description

General part information

NJM12884 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252-5
