DEB-B024RF2S

Active

Knowles Dielectric Labs

EVAL BOARD FOR B024RF2S

Search across all available documentation for this part.

Active

Knowles Dielectric Labs

EVAL BOARD FOR B024RF2S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

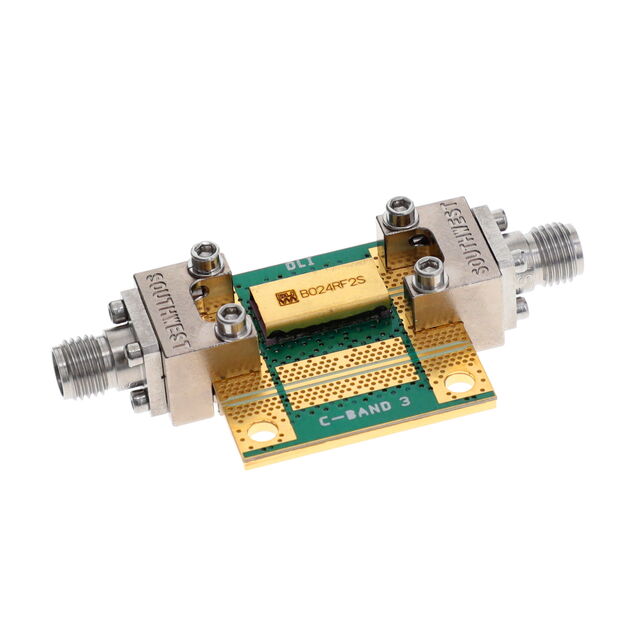

B024RF2S - Filter 2.4GHz Evaluation Board

Technical documentation and resources

No documents available

Specification	DEB-B024RF2S	B024RF Series

Bandwidth	-	1.08 GHz
Filter Type	-	Band Pass
For Use With/Related Products	B024RF2S	B024RF2S
Frequency	2.4 GHz	2.4 GHz
Height (Max)	-	0.113 in
Height (Max)	-	2.87 mm
Insertion Loss	-	3.5 dB
Mounting Type	-	Surface Mount
Package / Case	-	3-SMD, No Lead
Size / Dimension	-	6.35 mm
Size / Dimension	-	0.5 in
Size / Dimension	-	0.25 in
Size / Dimension	-	12.7 mm
Supplied Contents	Board(s)	Board(s)
Type	Filter	Filter

Part	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency	Bandwidth	Height (Max) [Max]	Height (Max) [Max]	Insertion Loss	Filter Type	For Use With/Related Products	Type	Supplied Contents
Knowles Dielectric Labs B024RF2S-T	3-SMD, No Lead	Surface Mount	6.35 mm	0.5 in	0.25 in	12.7 mm	2.4 GHz	1.08 GHz	0.113 in	2.87 mm	3.5 dB	Band Pass
Knowles Dielectric Labs DEB-B024RF2S							2.4 GHz						B024RF2S	Filter	Board(s)
