84142 001500

Active

Belden Inc.

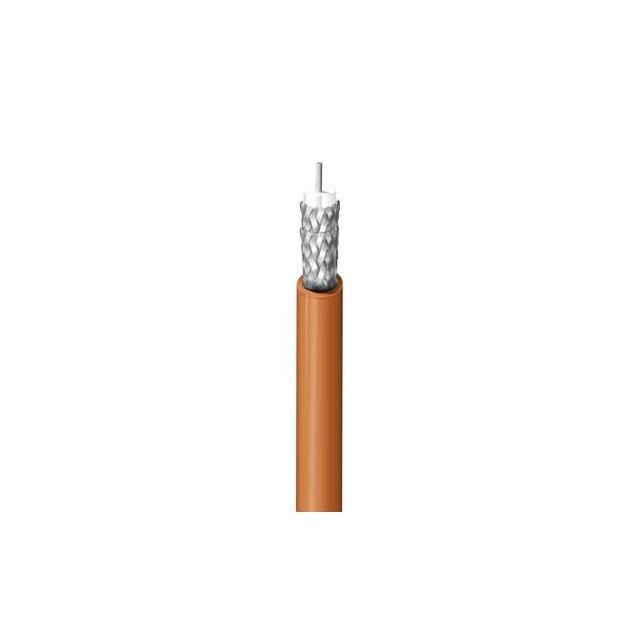

#18H RG142 COAX

Search across all available documentation for this part.

Active

Belden Inc.

#18H RG142 COAX

Technical Specifications

Parameters and characteristics for this part

Specification	84142 001500

Cable Group	RG-142
Cable Type	Coaxial - Plenum
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.95 mm
Dielectric Diameter [diameter]	0.116 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Brown
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Double Braid
Usage	Aerospace
VoP, Velocity of Propagation	70
Wire Gauge	19 AWG

Part	Jacket (Insulation) Material	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	VoP, Velocity of Propagation	Cable Type	Cable Group	Usage	Wire Gauge	Conductor Strand	Dielectric Material	Length	Length	Impedance	Shield Coverage	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color
Belden Inc. 84142 001500	Fluorinated Ethylene-Propylene (FEP)	Copper Silver Coated	0.195 in	4.95 mm	70	Coaxial - Plenum	RG-142	Aerospace	19 AWG	Solid	Polytetrafluoroethylene (PTFE)	152.4 m	6000 in	50 Ohms	95 %	Double Braid	200 °C	-70 °C	Copper Covered Silver Coated Steel	2.95 mm	0.116 in	Brown

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 19 AWG RG-142 500.0' (152.40m) 50 Ohms
