1011279CH

Active

Integrated Power Designs

GRN-80-1003 CH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1011279CH

Active

Integrated Power Designs

GRN-80-1003 CH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1011279CH	GRN-80 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA	TUV, cURus, CE, UKCA
Current - Output 1	6.7 A	1.7 - 16 A
Current - Output 2	-	1 - 5 A
Current - Output 3	-	2 A
Current - Output 4	-	1.5 A
Efficiency	87 %	85 - 88 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	80 W	53 - 109 W
Size / Dimension [x]	114.3 mm	114.3 - 133.4 mm
Size / Dimension [x]	4.5 in	4.5 - 5.25 in
Size / Dimension [y]	69.9 mm	69.9 - 82.6 mm
Size / Dimension [y]	69.85 mm	3.25 - 69.85 mm
Size / Dimension [z]	32.5 mm	32.5 mm
Size / Dimension [z]	1.28 in	1.28 in
Standard Number	60601-1, 62368-1	60601-1, 62368-1
Type	Chassis	Chassis, Enclosed
Voltage - Output 1	12 V	3.3 - 48 V
Voltage - Output 2	-	-15 - 24 V
Voltage - Output 3	-	-15 - 15 V
Voltage - Output 4	-	-15 V

GRN-80 Series

GRN-80-1005 CH

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Features	Number of Outputs	Mounting Type	Power (Watts)	Type	Standard Number	Voltage - Output 1	Applications	Current - Output 1	Approval Agency	Efficiency	Current - Output 4	Current - Output 2	Voltage - Output 2	Voltage - Output 4	Voltage - Output 3	Current - Output 3
Integrated Power Designs 1011281CH	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	80 W	Chassis	60601-1, 62368-1	24 V	ITE (Commercial), Medical	3.3 A	CE, cURus, TUV, UKCA	87 %
Integrated Power Designs 1011254CH	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	4	Chassis Mount	80 W	Chassis	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %	1.5 A	1 A	24 V	-15 V	15 V
Integrated Power Designs 1011277CHCO	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	53 W	Enclosed	60601-1, 62368-1	3.3 V	ITE (Commercial), Medical	16 A	CE, cURus, TUV, UKCA
Integrated Power Designs 1011390CH	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	2	Chassis Mount	80 W	Chassis	60601-1, 62368-1	15 V	ITE (Commercial), Medical	3 A	CE, cURus, TUV, UKCA	88 %		3 A	-15 V
Integrated Power Designs 1011254CHCO	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	4	Chassis Mount	80 W	Enclosed	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %	1.5 A	1 A	24 V	-15 V	15 V
Integrated Power Designs 1011368CHCO	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	80 W	Enclosed	60601-1, 62368-1	48 V	ITE (Commercial), Medical	1.7 A	CE, cURus, TUV, UKCA	87 %
Integrated Power Designs 1011280CH	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in	70 °C	Adjustable Output, Remote Sense, Universal Input	1	Chassis Mount	80 W	Chassis	60601-1, 62368-1	15 V	ITE (Commercial), Medical	5.3 A	CE, cURus, TUV, UKCA	87 %
Integrated Power Designs 1011390CHCO	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	2	Chassis Mount	80 W	Enclosed	60601-1, 62368-1	15 V	ITE (Commercial), Medical	3 A	CE, cURus, TUV, UKCA	88 %		3 A	-15 V
Integrated Power Designs 1011385CHCO	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	3	Chassis Mount	88 W	Enclosed	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %		2 A	12 V		-12 V	2 A
Integrated Power Designs 1011252CH	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	70 °C	Adjustable Output, Remote Sense, Universal Input	4	Chassis Mount	80 W	Chassis	60601-1, 62368-1	5 V	ITE (Commercial), Medical	8 A	CE, cURus, TUV, UKCA	88 %	1.5 A	5 A	-5 V		12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 89.68
		25	$ 85.62
		100	$ 83.22

Description

General part information

GRN-80 Series

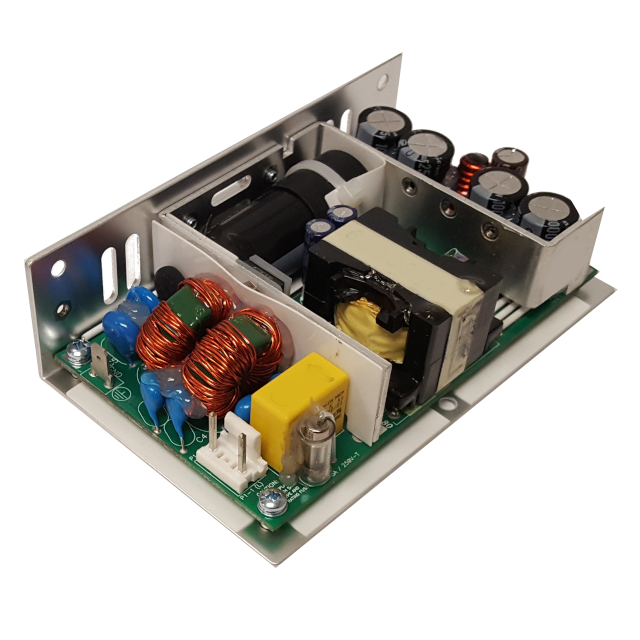

Chassis AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
