PE9472
ActivePasternack

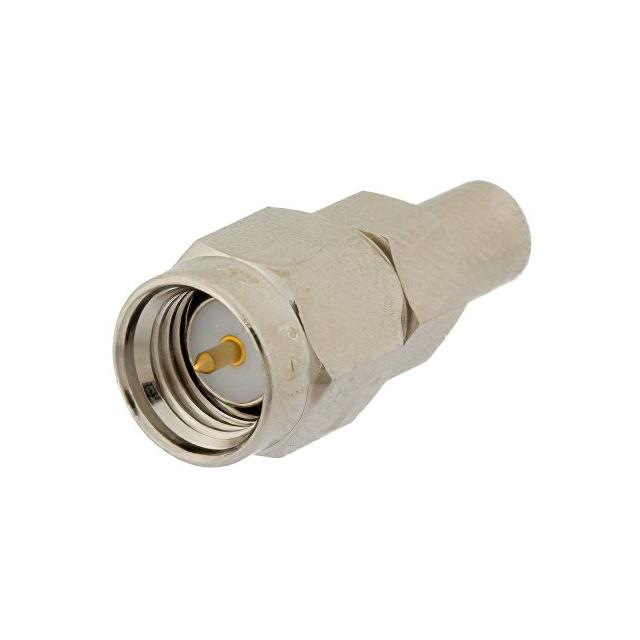

SMA MALE TO MCX JACK ADAPTER
PE9472
ActivePasternack
SMA MALE TO MCX JACK ADAPTER
Description
General part information
PE9472
Adapter Coaxial Connector SMA Plug, Male Pin To MCX Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9472 |
|---|---|
| Adapter Series | SMA to MCX |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | MCX Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
