HCP1305-R82-R
ObsoleteEaton - Electronics Division
FIXED IND 820NH 31A 2.3 MOHM SMD
HCP1305-R82-R
ObsoleteEaton - Electronics Division
FIXED IND 820NH 31A 2.3 MOHM SMD
Description
General part information
HCP1305-R82-R

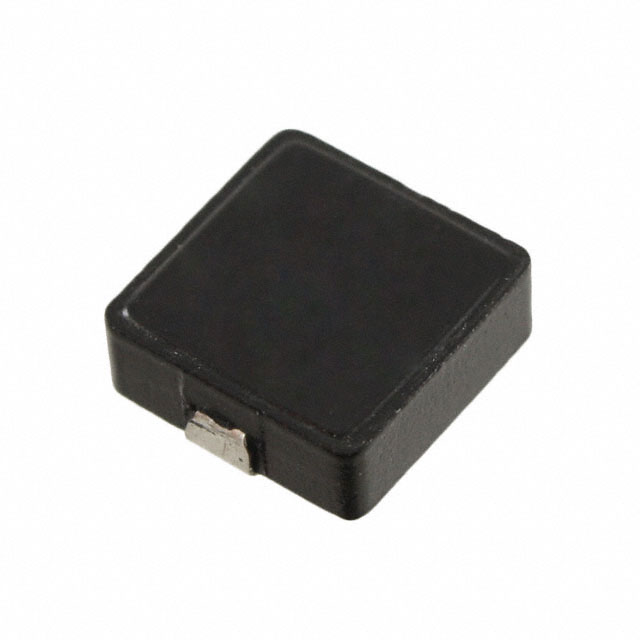

820 nH Unshielded Drum Core, Wirewound Inductor 31 A 2.3mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | HCP1305-R82-R |
|---|---|
| Current - Saturation (Isat) | 52 A |
| Current Rating | 31 A |
| DC Resistance (DCR) (Max) | 2.3 mOhm |
| Height - Seated (Max) | 0.197 in |
| Inductance | 820 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.543 in |
| Size / Dimension Width | 0.508 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
