A8A-203
ActiveOmron Electronics Inc-EMC Div

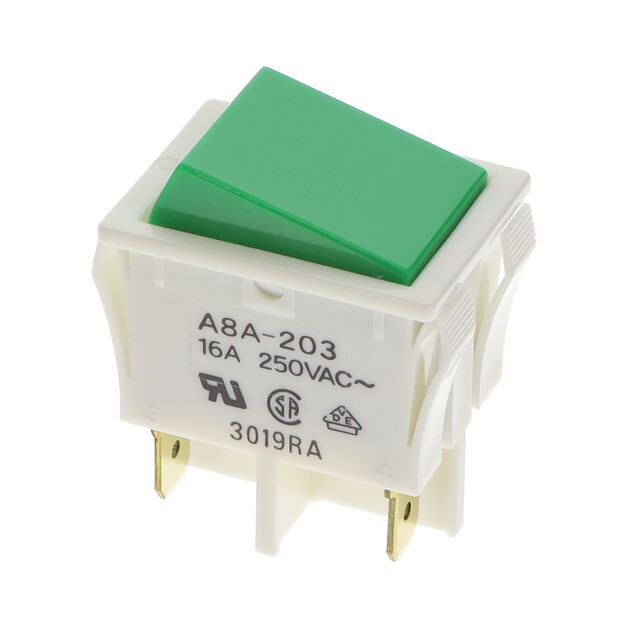

SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
A8A-203
ActiveOmron Electronics Inc-EMC Div
SWITCH ROCKER DPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A8A-203 | - Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking, O I, O - |
| Actuator Type | Flat | Flat - Illuminated, Flat, Concave (Curved), Concave (Standard V) |
| Approval Agency | CSA, EN, UL | CSA, EN, UL, cULus, EN, UL |
| Circuit | DPST | DPST, SPST-NO (1 Form A) x 2, SPST |
| Color - Actuator/Cap | Green | Red, Black, Green, Orange, White, Yellow |
| Current Rating (Amps) | 16 A | 16 A |
| Electrical Life | 20000 Steps | 10000 - 20000 Steps |
| Illumination Type, Color | - | Red, Neon, Orange, Green |
| Illumination Voltage (Nominal) | - | 220 VAC/DC |
| Ingress Protection | IP00 | IP00, IP67 - Dust Tight, Waterproof |
| Load Current | - | 120 - 400 mA |
| Mechanical Life | 40000 Cycles | 40000 Cycles |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Through Hole, Surface Mount |
| On-State Resistance (Max) | - | 2 - 35 Ohm |
| Operating Temperature [Max] | 50 °C | 50 - 85 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Output Type | - | DC, AC |
| Package / Case | - | 6-DIP, 4-SOP, 8-SOP, 6-SMD, 8-DIP |
| Package / Case | - | 0.3 in |
| Package / Case | - | 0.173 - 7.62 mm |
| Package / Case | - | 4.4 - 7.62 mm |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Panel Cutout Dimensions | - | Rectangular |
| Panel Cutout Dimensions [x] | 30 mm | 19.2 - 30 mm |
| Panel Cutout Dimensions [y] | 22 mm | 12.9 - 22 mm |
| Supplier Device Package | - | 6-DIP, 4-SOP, 8-SOP, 6-SMD, 8-DIP |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm), PC Pin, Gull Wing |
| Voltage - Input | - | 1.15 - 1.4 V |
| Voltage - Load | - | 60 - 350 V |
| Voltage - Load | - | 0 V |
| Voltage Rating - AC | 125 V | 125 V |
- Series
SWITCH ROCKER DPST 16A 125V
| Part | Actuator Type | Termination Style | Illumination Voltage (Nominal) | Mechanical Life | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Type, Color | Mounting Type | Color - Actuator/Cap | Voltage Rating - AC | Ingress Protection | Circuit | Current Rating (Amps) | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Actuator Marking | Electrical Life | Voltage - Input | Package / Case | Package / Case | Package / Case | Supplier Device Package | Output Type | On-State Resistance (Max) [Max] | Load Current | Voltage - Load [Max] | Voltage - Load [Min] | Package / Case | Package / Case [custom] | Package / Case [x] | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A8A-222 | Flat - Illuminated | Quick Connect - 0.250" (6.3mm) | 220 VAC/DC | 40000 Cycles | 30 mm | 22 mm | Neon, Red | Panel Mount, Snap-In | Red | 125 V | IP00 | DPST | 16 A | On-Off | 50 °C | -25 °C | CSA, EN, UL | No Marking | 20000 Steps | ||||||||||||||
Omron Electronics Inc-EMC Div G3VM-4N | PC Pin | Through Hole | 85 °C | -40 °C | 1.4 V | 6-DIP | 0.3 in | 7.62 mm | 6-DIP | AC, DC | 12 Ohm | 150 mA | |||||||||||||||||||||
Omron Electronics Inc-EMC Div G3VM-S2 | Gull Wing | Surface Mount | 85 °C | -40 °C | 1.15 VDC | 4-SOP | 0.173 in | 4-SOP | AC, DC | 35 Ohm | 120 mA | 350 V | 0 V | 4.4 mm | |||||||||||||||||||
Omron Electronics Inc-EMC Div G3VM-SY | Gull Wing | Surface Mount | SPST-NO (1 Form A) x 2 | 85 °C | -40 °C | 1.15 VDC | 8-SOP | 8-SOP | AC, DC | 2 Ohm | 300 mA | 60 V | 0 V | 4.4 mm | 0.173 in | ||||||||||||||||||
Omron Electronics Inc-EMC Div A8A-207 | Flat | Quick Connect - 0.250" (6.3mm) | 40000 Cycles | 30 mm | 22 mm | Panel Mount, Snap-In | Black | 125 V | IP00 | DPST | 16 A | On-Off | 50 °C | -25 °C | CSA, EN, UL | No Marking | 20000 Steps | ||||||||||||||||
Omron Electronics Inc-EMC Div A8MD-1162 | Concave (Curved) | 19.2 mm | 12.9 mm | Panel Mount, Snap-In | Black | 125 V | DPST | 16 A | On-Off | 55 °C | -25 °C | cULus, EN, UL | O I | 10000 Cycles | Rectangular | ||||||||||||||||||
Omron Electronics Inc-EMC Div G3VM-S1 | Gull Wing | Surface Mount | 85 °C | -40 °C | 1.15 VDC | 4-SOP | 0.173 in | 4-SOP | AC, DC | 2 Ohm | 400 mA | 60 V | 0 V | 4.4 mm | |||||||||||||||||||
Omron Electronics Inc-EMC Div A8A-212 | Flat - Illuminated | Quick Connect - 0.250" (6.3mm) | 40000 Cycles | 30 mm | 22 mm | Neon, Red | Panel Mount, Snap-In | Red | 125 V | IP00 | DPST | 16 A | On-Off | 50 °C | -25 °C | CSA, EN, UL | No Marking | 20000 Steps | |||||||||||||||
Omron Electronics Inc-EMC Div A8A-203 | Flat | Quick Connect - 0.250" (6.3mm) | 40000 Cycles | 30 mm | 22 mm | Panel Mount, Snap-In | Green | 125 V | IP00 | DPST | 16 A | On-Off | 50 °C | -25 °C | CSA, EN, UL | No Marking | 20000 Steps | ||||||||||||||||
Omron Electronics Inc-EMC Div A8A-226 | Flat - Illuminated | Quick Connect - 0.250" (6.3mm) | 220 VAC/DC | 40000 Cycles | 30 mm | 22 mm | Neon, Orange | Panel Mount, Snap-In | Orange | 125 V | IP00 | DPST | 16 A | On-Off | 50 °C | -25 °C | CSA, EN, UL | No Marking | 20000 Steps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.33 | |
Description
General part information
- Series
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
