142V-04P
ActiveDinkle Corporation, USA
TERM BLK 4POS 5.08MM PID PLG
142V-04P
ActiveDinkle Corporation, USA
TERM BLK 4POS 5.08MM PID PLG
Description
General part information
142V-04P

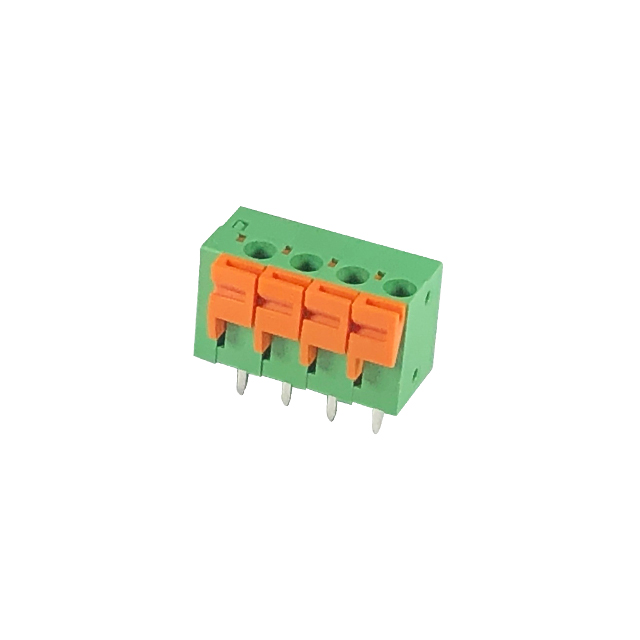

4 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 142V-04P |
|---|---|
| Color | Green |
| Current | 10 A |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 4 |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
