148138

Active

Rosenberger

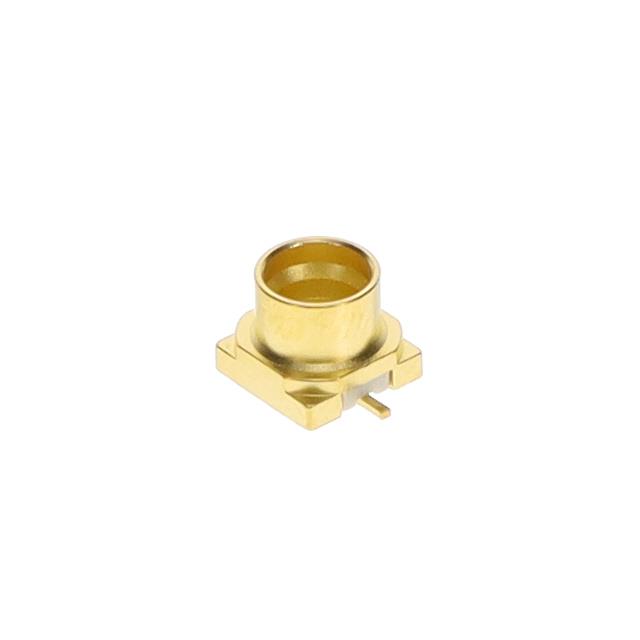

SMP STRAIGHT PLUG PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

148138

Active

Rosenberger

SMP STRAIGHT PLUG PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 99.82
		1	$ 5.15
		10	$ 4.68
		25	$ 4.43
		50	$ 4.33
		100	$ 4.12
		300	$ 3.61
		500	$ 3.50
		1000	$ 2.99
		2500	$ 2.78

Description

General part information

- Series

SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	148138	- Series

Body Finish	Gold	Gold, White Bronze
Body Material	Brass	Brass, Beryllium Copper
Cable Group	-	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	-	Mini, SMP, N Type, SMA, PSMP, Longwipe, MCX, Miniature Coaxial
Connector Style	-	1.35 mm
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack, Compression Contact, Male
Contact Finish	-	Gold
Contact Material	-	Beryllium Copper, Brass
Contact Termination	Solder	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP), Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Snap-On	Snap-On
Features	Limited Detent	Smooth Bore, Full Detent, Limited Detent, Catcher's Mitt, Mounting Hardware
Frequency - Max [Max]	26.5 GHz	4 - 6000 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Material	-	Brass
Mating Cycles	500	500 - 3000
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Surface Mount	Surface Mount, Free Hanging, Cap, Through Hole, Cutout, Board Edge, Surface Mount, Right Angle
Mounting Type	-	30 °
Number of Contacts	-	5
Number of Ports	1	1
Number of Rows	-	3
Operating Temperature [Max]	155 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Pitch	-	0.098 in
Pitch	-	2.5 mm
Row Spacing	-	0.098 in
Row Spacing	-	2.5 mm
Shield Termination	Solder	Solder, Screw
Voltage Rating	335 V	150 - 480 V

- Series

SMP STRAIGHT PLUG PCB

Part	Mounting Type	Shield Termination	Center Contact Material	Center Contact Plating	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mating Cycles	Voltage Rating	Frequency - Max [Max]	Body Finish	Features	Number of Ports	Body Material	Connector Type	Fastening Type	Contact Termination	Impedance	Connector Style	Contact Finish	Contact Material
Rosenberger 145799	Surface Mount	Solder	Brass	Gold	Liquid Crystal Polymer (LCP)	155 °C	-65 ░C	Gold	1000	335 V	26.5 GHz	Gold	Smooth Bore	1	Brass	Male Pin, Plug	Snap-On	Solder	50 Ohms
Rosenberger 464782	Cap, Free Hanging				Polytetrafluoroethylene (PTFE)						40 GHz	Gold	Full Detent		Beryllium Copper	Male Pin, Plug			50 Ohms	Mini, SMP	Gold	Beryllium Copper
Rosenberger 464795	Cap, Free Hanging				Polytetrafluoroethylene (PTFE)						4 GHz	White Bronze			Brass	Male Pin, Plug			50 Ohms	N Type	Gold	Brass
Rosenberger 464791	Cap, Free Hanging				Polytetrafluoroethylene (PTFE)						12.4 GHz	Gold			Brass	Male Pin, Plug			50 Ohms	SMA	Gold	Brass
Rosenberger 148138	Surface Mount	Solder	Brass	Gold	Liquid Crystal Polymer (LCP)	155 °C	-65 ░C	Gold	500	335 V	26.5 GHz	Gold	Limited Detent	1	Brass	Male Pin, Plug	Snap-On	Solder	50 Ohms
Rosenberger 211279	Surface Mount, Through Hole	Solder	Brass	Gold	Polyetheretherketone (PEEK)	165 °C	-65 ░C	Gold		480 V	10 GHz	Gold	Limited Detent	1	Brass	Male Pin, Plug	Snap-On	Solder	50 Ohms	PSMP
Rosenberger 187669	Board Edge, Cutout, Surface Mount	Solder	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Gold		325 V	65 GHz	Gold	Full Detent	1	Brass	Male Pin, Plug	Snap-On	Solder	50 Ohms	Mini, SMP
Rosenberger 187635	Surface Mount	Solder	Brass	Gold	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	Gold		325 V	65 GHz	Gold	Full Detent	1	Brass	Male Pin, Plug	Snap-On	Solder	50 Ohms	Mini, SMP
Rosenberger 464792	Cap, Free Hanging				Polytetrafluoroethylene (PTFE)						18 GHz	Gold			Brass	Male Pin, Plug			50 Ohms	SMA	Gold	Brass
Rosenberger 136644	Surface Mount	Solder	Beryllium Copper	Gold		155 °C	-65 ░C	Gold	500	335 V	40 GHz	Gold	Limited Detent	1	Brass	Male Pin, Plug	Snap-On	Solder	50 Ohms
