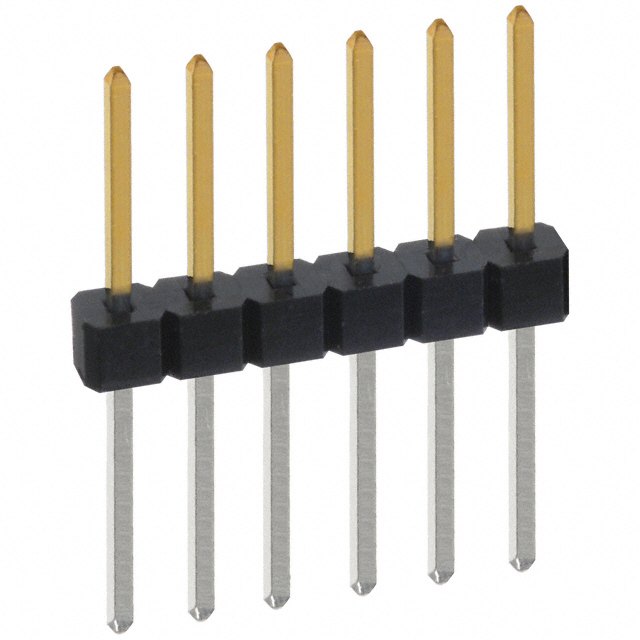

PBC06SFBN
ActiveSullins Connector Solutions
CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PBC06SFBN |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post | 0.22 in |
| Contact Length - Post | 5.58 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Contact Length | 16.21 mm |
| Overall Contact Length | 0.638 in |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PBC06 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Finish - Post | Number of Positions Loaded | Style | Current Rating (Amps) | Insulation Material | Mounting Type | Termination | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Insulation Color | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Material Flammability Rating | Fastening Type | Shrouding | Overall Contact Length | Overall Contact Length | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 10 çin | 0.25 çm | 6 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole | Solder | Gold | 125 °C | -65 ░C | 1 | Male Pin | Black | 10.67 mm | 0.42 in | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.75 in | 19.05 mm | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | Phosphor Bronze | 2.54 µm | 100 µin | |||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 6 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole | Solder | Gold | 125 °C | -65 ░C | 1 | Male Pin | Black | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.638 in | 16.21 mm | 0.1 in | 2.54 mm | 0.318 " | Phosphor Bronze | 2.54 µm | 100 µin | 0.22 in | 5.58 mm | 8.08 mm | |||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 12 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Solder | Gold | 125 °C | -65 ░C | 2 | Male Pin | Black | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.24 in | 6.1 mm | 0.318 " | Phosphor Bronze | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | 8.08 mm | 2.54 mm | 0.1 in | |||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 6 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole | Solder | Gold | 125 °C | -65 ░C | 1 | Male Pin | Black | 3.05 mm | 0.12 in | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.538 " | 13.67 mm | 0.1 in | 2.54 mm | 0.318 " | Phosphor Bronze | 2.54 µm | 100 µin | 8.08 mm | |||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 6 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Solder | Gold | 125 °C | -65 ░C | 1 | Male Pin | Black | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.14 in | 3.56 mm | 0.318 " | Phosphor Bronze | 2.54 µm | 100 µin | 0.1 in | 2.54 mm | 8.08 mm | |||||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 12 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole | Solder | Gold | 125 °C | -65 ░C | 2 | Male Pin | Black | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.85 in | 21.59 mm | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | Phosphor Bronze | 2.54 µm | 100 µin | 0.52 " | 13.21 mm | 2.54 mm | 0.1 in | |||
Sullins Connector Solutions | 10 çin | 0.25 çm | 12 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Solder | Gold | 125 °C | -65 ░C | 2 | Male Pin | Black | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.24 in | 6.1 mm | 0.23 in | 5.84 mm | Phosphor Bronze | 2.54 µm | 100 µin | 0.5 in | 12.7 mm | 2.54 mm | 0.1 in | |||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 12 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole | Solder | Gold | 125 °C | -65 ░C | 2 | Male Pin | Black | 3.05 mm | 0.12 in | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.45 " | 11.43 mm | 0.1 in | 2.54 mm | 0.23 in | 5.84 mm | Phosphor Bronze | 2.54 µm | 100 µin | 2.54 mm | 0.1 in | |||
Sullins Connector Solutions | 10 çin | 0.25 çm | 6 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole Right Angle | Solder | Gold | 125 °C | -65 ░C | 1 | Male Pin | Black | 10.16 mm | 0.4 in | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.14 in | 3.56 mm | 0.23 in | 5.84 mm | Phosphor Bronze | 2.54 µm | 100 µin | |||||||
Sullins Connector Solutions | 10 çin | 0.25 çm | 6 | 0.1 in | 2.54 mm | Square | Tin | All | Board to Board Cable | 3 A | Polybutylene Terephthalate (PBT) | Through Hole | Solder | Gold | 125 °C | -65 ░C | 1 | Male Pin | Black | 8.13 mm | 0.32 in | Breakaway Header | UL94 V-0 | Push-Pull | Unshrouded | 0.738 " | 18.75 mm | 0.1 in | 2.54 mm | 0.318 " | Phosphor Bronze | 2.54 µm | 100 µin | 8.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.59 | |||
| 100 | $ 0.49 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.35 | |||
| 5000 | $ 0.31 | |||
| 10000 | $ 0.30 | |||
Description
General part information
PBC06 Series
Connector Header Through Hole 6 position 0.100" (2.54mm)
