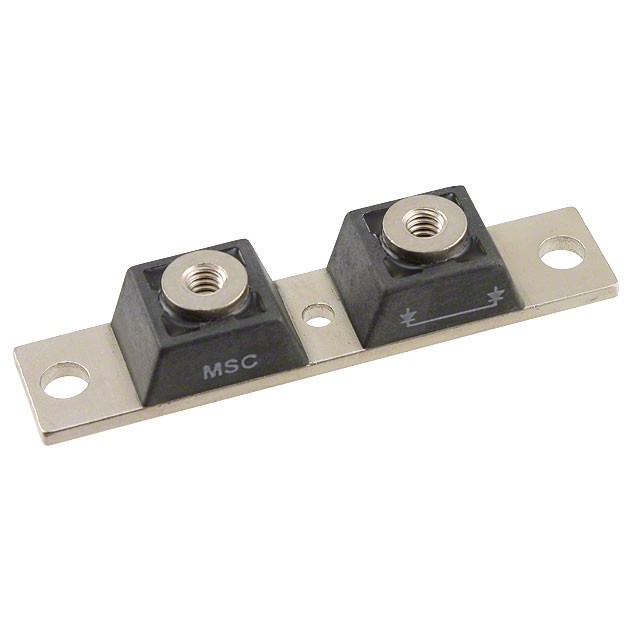

CPT50060
ObsoleteMicrosemi Corporation
DIODE MOD SCHOTT 60V 250A 2TOWER
CPT50060
ObsoleteMicrosemi Corporation
DIODE MOD SCHOTT 60V 250A 2TOWER
Description
General part information
CPT50060
Diode Array 1 Pair Common Cathode 60 V 250A Chassis Mount Twin Tower
Technical Specifications
Parameters and characteristics for this part
| Specification | CPT50060 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 250 A |
| Current - Reverse Leakage | 8 mA |
| Diode Configuration | Common Cathode |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Package / Case | Twin Tower |
| Package Name | Twin Tower |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) | 730 mV |
