FMHR0192-8
ActiveFairview Microwave
CBL ASSY SMAJACK-TNCJACK 8
FMHR0192-8
ActiveFairview Microwave
CBL ASSY SMAJACK-TNCJACK 8
Description
General part information
FMHR0192-8

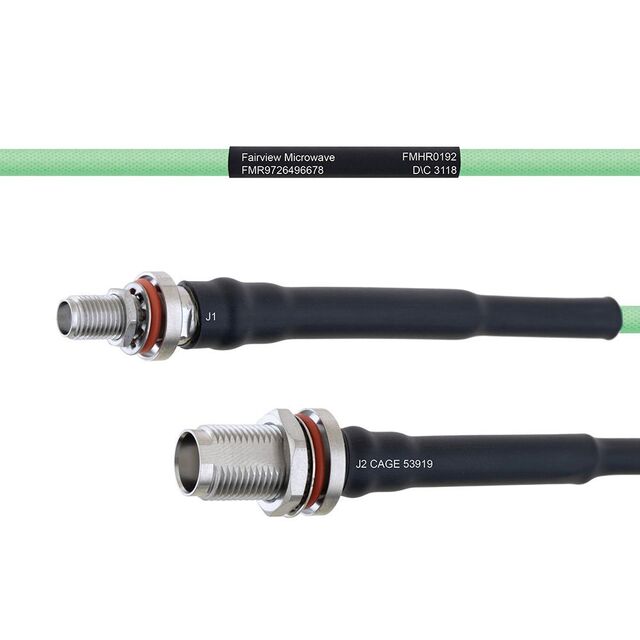

Cable Assembly Coaxial SMA to TNC LL160 8.000" (203.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0192-8 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 8 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
