9875 060500

Active

Belden Inc.

MULTI-PAIR 18COND 20AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 18COND 20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9875 060500

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	14.1 mm
Jacket (Insulation) Diameter [diameter]	0.555 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.321 mm
Jacket (Insulation) Thickness	0.052 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	18
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Number of Conductors	Length [x]	Length [x]	Usage	Conductor Material	Jacket (Insulation) Material	Shield Type	Cable Type	Shield Coverage	Jacket Color	Wire Gauge	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 9875 060500	-20 C	80 C	28	7	Aluminum	18	500 '	152.4 m	Audio Control Instrumentation	Copper Tinned	Poly-Vinyl Chloride (PVC)	Foil	Multi-Pair	100 %	Chrome	20 AWG	UL Style 2919	14.1 mm	0.555 in	Polypropylene (PP)	Drain Wire	1.321 mm	0.052 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 12.81

General part information

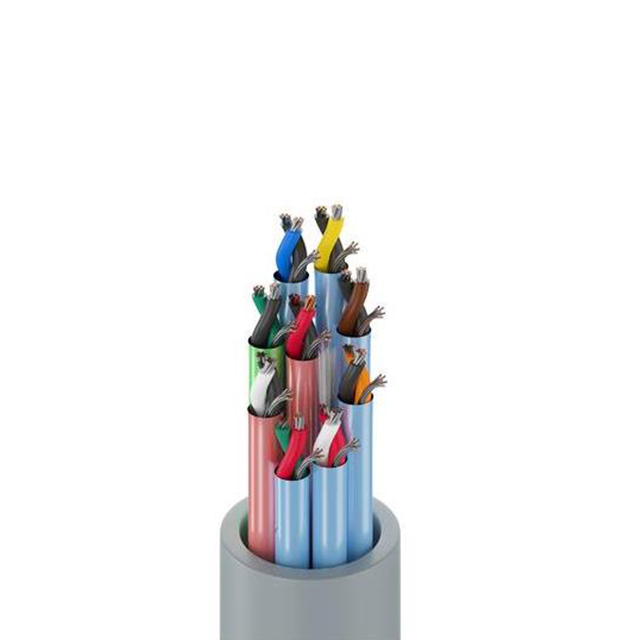

18 (9 Pair Twisted) Conductor Multi-Pair Cable Chrome 20 AWG Foil 500.0' (152.4m)
