EPS-400-.700-48-BLACK-BOX

Active

HEATSHRK EPS400 .700"X6" 50=50PC

Search across all available documentation for this part.

Active

HEATSHRK EPS400 .700"X6" 50=50PC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

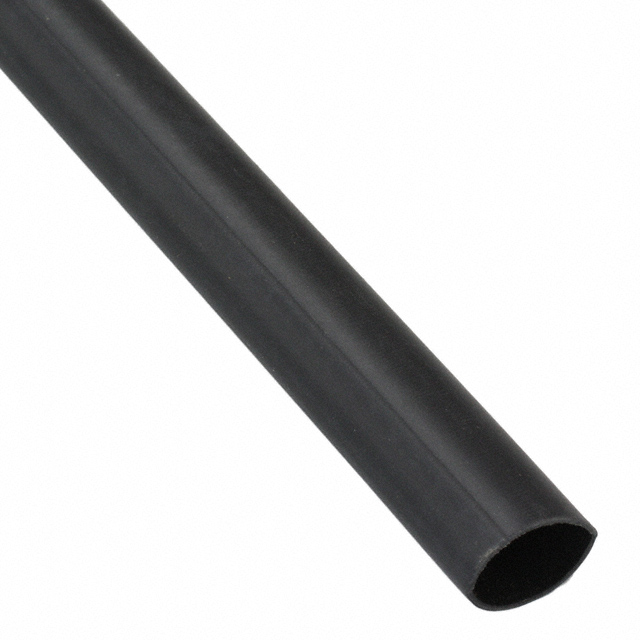

Heat Shrink Tubing, Semi Rigid 0.700" (17.78mm) 4 to 1 Black 0.500' (152.40mm, 6.00")

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EPS-400-.700-48-BLACK-BOX	EPS-400 Series

Color	Black	Black
Features	Flame Retardant, Fluid Resistant, Adhesive Lined	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered	4.45 mm	4.45 mm
Inner Diameter - Recovered	0.175 in	0.175 in
Inner Diameter - Recovered	-	1.52 mm
Inner Diameter - Recovered	-	0.06 in
Inner Diameter - Supplied [diameter]	0.7 "	0.3 - 0.7 in
Inner Diameter - Supplied [diameter]	17.78 mm	7.62 - 17.78 mm
Length	152.4 mm	152.4 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.22 m
Length	-	4 ft
Material	Polyolefin (PO), Irradiated	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.06 in	0.033 - 0.06 in
Recovered Wall Thickness	1.52 mm	0.84 - 1.52 mm
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio	4 to 1	4 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Semi Rigid	Tubing, Semi Rigid

HEAT SHRINK TUBING ST SEMI RIGID POLYOLEFIN BLACK MEDIUM

Part	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life Start	Type	Shelf Life	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Length	Length
3M EPS-400-.300-48-BLACK-BUL	Black	1.52 mm	0.06 in	Date of Manufacture	Tubing, Semi Rigid	120 Months	1.22 m	4 ft	7.62 mm	0.3 in	-55 °C	110 °C	121 °C	0.84 mm	0.033 in	4 to 1	Adhesive Lined, Flame Retardant, Fluid Resistant	27 °C, 80 °F	10 °C	Polyolefin (PO), Irradiated
3M EPS-400-.700-48-BLACK-BOX	Black			Date of Manufacture	Tubing, Semi Rigid	120 Months			17.78 mm	0.7 "	-55 °C	110 °C	121 °C	1.52 mm	0.06 in	4 to 1	Adhesive Lined, Flame Retardant, Fluid Resistant	27 °C, 80 °F	10 °C	Polyolefin (PO), Irradiated	4.45 mm	0.175 in	152.4 mm	6 "	0.5 '
3M EPS-400-.300-48-BLACK-BOX	Black	1.52 mm	0.06 in	Date of Manufacture	Tubing, Semi Rigid	120 Months	1.22 m	4 ft	7.62 mm	0.3 in	-55 °C	110 °C	121 °C	0.84 mm	0.033 in	4 to 1	Adhesive Lined, Flame Retardant, Fluid Resistant	27 °C, 80 °F	10 °C	Polyolefin (PO), Irradiated
