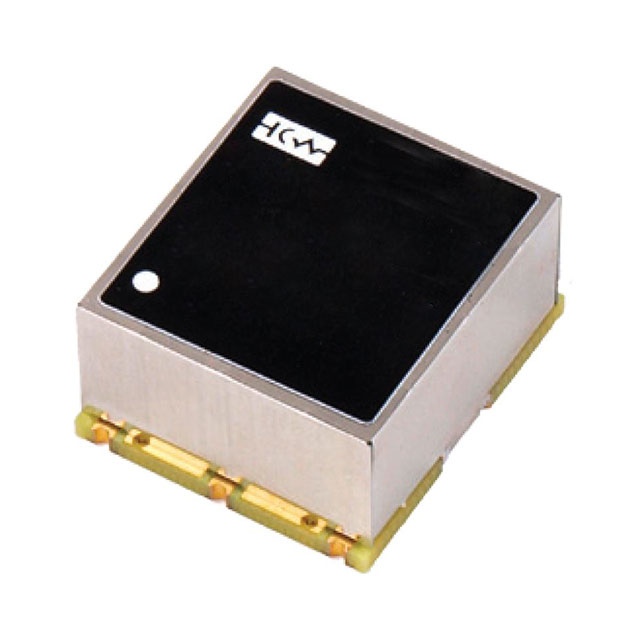

OH320-CC-70103CF-012.8M
ActiveConnor Winfield
XTAL OSC OCXO 12.80MHZ CMOS
OH320-CC-70103CF-012.8M
ActiveConnor Winfield
XTAL OSC OCXO 12.80MHZ CMOS
Description
General part information
OH320-CC-70103CF-012.8M
12.8 MHz OCXO CMOS Oscillator 3.3V 7-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | OH320-CC-70103CF-012.8M |
|---|---|
| Base Resonator | Crystal |
| Frequency | 12.8 MHz |
| Frequency Stability | 1 ppb |
| Height - Seated (Max) | 0.567 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS |
| Package / Case | No Lead, 7-SMD |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.866 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
