LS05-1R0J-RC
ActiveAllied Components International
1.0UH +/-5% FERRITE CORE CHIP
LS05-1R0J-RC
ActiveAllied Components International
1.0UH +/-5% FERRITE CORE CHIP
Description
General part information
LS05-1R0J-RC

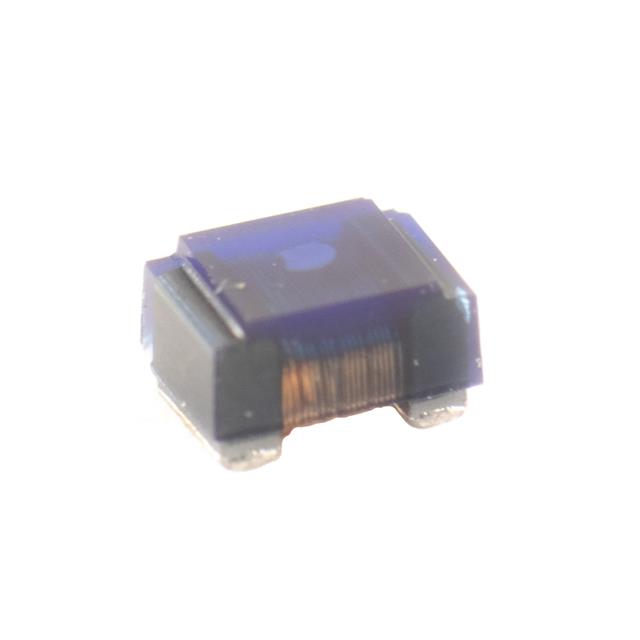

1 µH Unshielded Wirewound Inductor 690mOhm Max 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LS05-1R0J-RC |
|---|---|
| Current - Saturation (Isat) | 0.7 mA |
| DC Resistance (DCR) (Max) | 690 mOhm |
| Frequency - Self Resonant | 400 MHz |
| Height - Seated (Max) | 0.06 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Q | 20 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.094 in |
| Size / Dimension Width | 0.068 in |
| Tolerance | 5 % |
| Type | Wirewound |
