Description
General part information

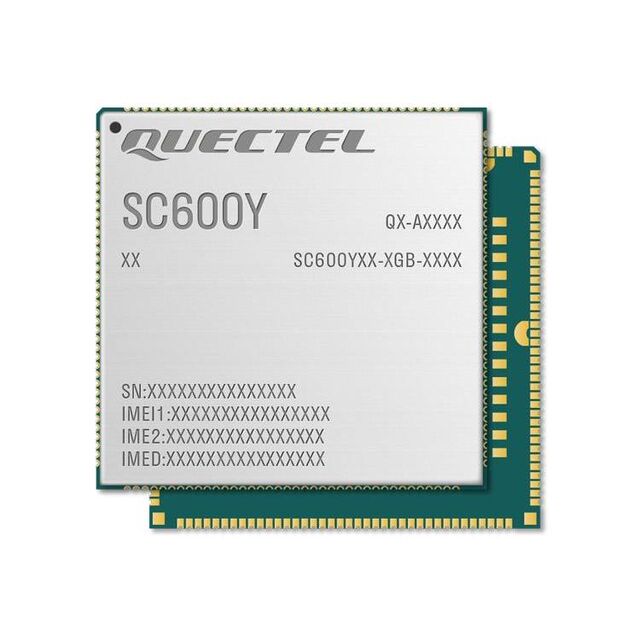

SC600YJPPA-E53-UGADA
Bluetooth, Cellular, Navigation, WiFi 802.11a/b/g/n/ac, BeiDou, Bluetooth v2.1 + EDR, GLONASS, GNSS, GPS, HSPA+, LTE, UMTS, WCDMA Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SC600YJPPA-E53-UGADA |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 300 Mbps |
| Frequency | 900 MHz, 1.8 GHz, 850 MHz, 1.9 GHz |
| Frequency | 1.8GHz, 850MHz, 1.9GHz, 900MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -35 °C |
| Package / Case | Module |
| Power - Output | 33 dBm |
| Protocol | Bluetooth v2.1 + EDR, GNSS, GLONASS, 802.11n, 802.11b, LTE, 802.11a, 802.11ac, GPS, WCDMA, UMTS, HSPA+, 802.11g, BeiDou |
| RF Family/Standard | WiFi, Bluetooth, Cellular, Navigation |
| Serial Interfaces | SPI, UART, ADC, GPIO, USB, I2C, SDIO, PWM, LCM |
| Utilized IC / Part | Qualcomm® Snapdragon SDM450 |
| Voltage - Supply (Maximum) | 4.4 V |
| Voltage - Supply (Minimum) | 3.55 V |
