FMCN44285
ActiveFairview Microwave
CONN JACK SOLDER MINI SMB
FMCN44285
ActiveFairview Microwave
CONN JACK SOLDER MINI SMB
Description
General part information
FMCN44285

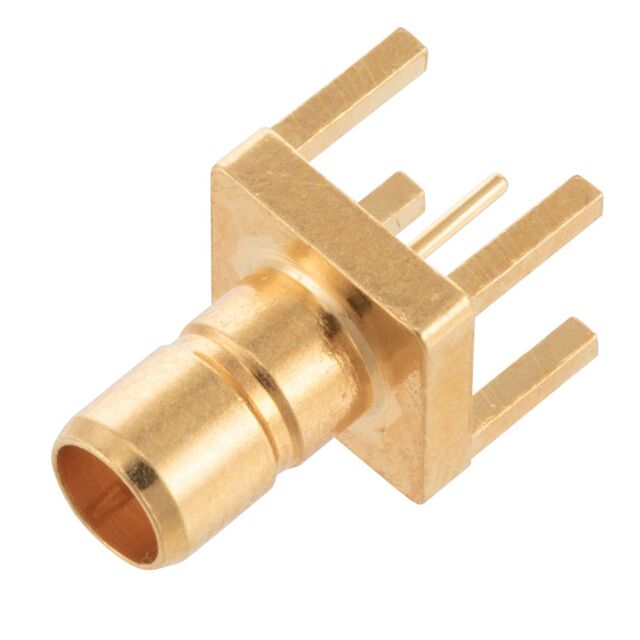

SMB Connector Jack, Female Socket 75 Ohms Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN44285 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 2 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohm |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
