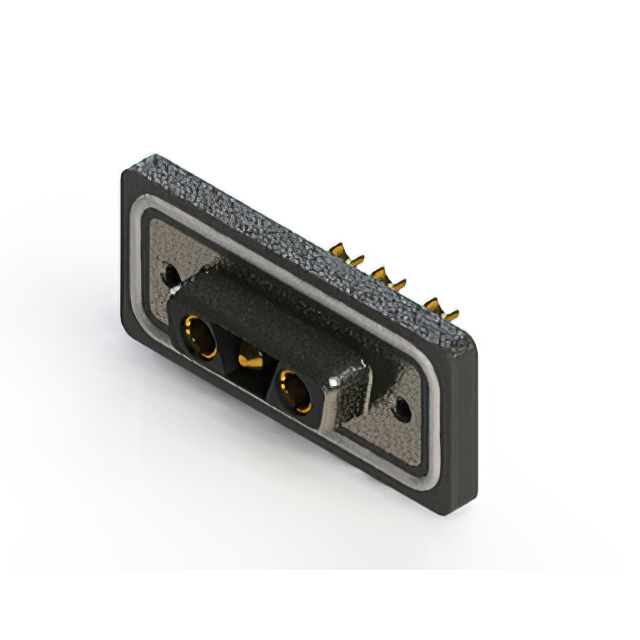

628W3WK3122-2NA
ActiveEDAC Inc.
CONN D-SUB RCPT 3P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628W3WK3122-2NA
ActiveEDAC Inc.
CONN D-SUB RCPT 3P PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628W3WK3122-2NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Female Sockets, Male Pins, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 3WK3 |
| Voltage Rating | 125 VDC |
628W3W Series
...
| Part | Contact Material | Shell Material, Finish | Number of Positions | Number of Rows | Flange Feature | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Ingress Protection | Voltage Rating | Contact Type | Dielectric Material | Connector Style | Material Flammability Rating | Termination | Contact Finish Thickness | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (4-40) | Black | 2 (DA A) | 3W3 | 0.127 µm | 5 µin | 40 A | Gold | Receptacle Female Sockets | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | |||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (4-40) | Black | 2 (DA A) | 3W3 | 40 A | Gold | Receptacle Female Sockets | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Solder | Flash | |||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (4-40) | Black | 2 (DA A) | 3W3 | 0.127 µm | 5 µin | 20 A | Gold | Receptacle Female Sockets | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Solder | ||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (M3) | Black | 40 A | Gold | Female Sockets Male Pins Receptacle | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Solder | Flash | 2 (DA A) - 3WK3 | ||||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (4-40) | Black | 2 (DA A) | 3W3 | 0.127 µm | 5 µin | 40 A | Gold | Receptacle Female Sockets | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Solder | ||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (M3) | Black | 40 A | Gold | Female Sockets Male Pins Receptacle | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Flash | 2 (DA A) - 3WK3 | |||||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (M3) | Black | 2 (DA A) | 3W3 | 30 A | Gold | Receptacle Female Sockets | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Flash | ||||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (M3) | Black | 0.127 µm | 5 µin | 20 A | Gold | Female Sockets Male Pins Receptacle | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | 2 (DA A) - 3WK3 | ||||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Board Side (M3) | Black | 2 (DA A) | 3W3 | 40 A | Gold | Receptacle Female Sockets | -25 °C | 85 °C | Board Lock Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Solder | Flash | |||
EDAC Inc. | Copper Alloy | Nickel Plated Steel | 3 | 1 | Housing/Shell (M3) | Black | 30 A | Gold | Female Sockets Male Pins Receptacle | -25 °C | 85 °C | Shielded | IP67 - Dust Tight Waterproof | 125 VDC | Power | Polybutylene Terephthalate (PBT) Glass Filled | Combo D-Sub | UL94 V-0 | Solder | Flash | 2 (DA A) - 3WK3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 12.74 | |
Description
General part information
628W3W Series
3 (Power) Position D-Sub, Combo Receptacle, Female Sockets and Male Pins Connector
