XQEAWT-00-0000-00000BFE1-SB01

Active

New Energy

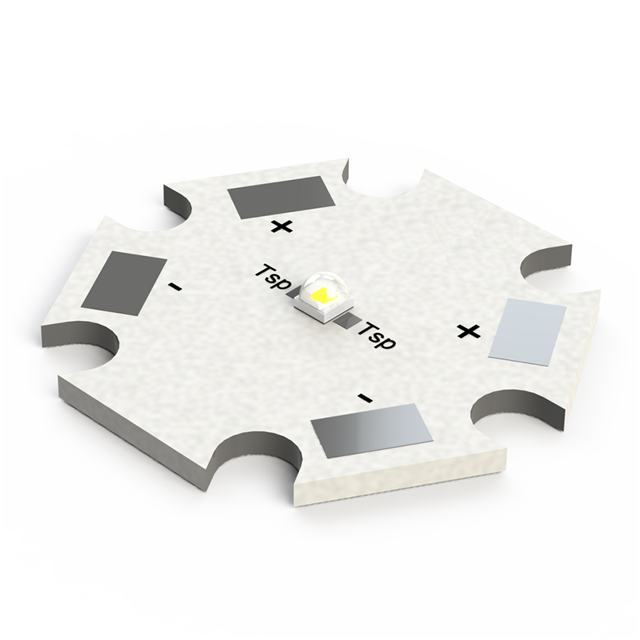

LED MOD XLAMP WHT STARBRD 6500K

Search across all available documentation for this part.

Active

New Energy

LED MOD XLAMP WHT STARBRD 6500K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQEAWT-00-0000-00000BFE1-SB01	XQEAWT Series

CCT (K)	6500 K	2700 - 6500 K
Color	White, Cool, White, Warm	White, Warm, White, Cool, White, Warm, Neutral, Cool
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	70	70 - 80
Current - Max [Max]	1 A	1 A
Current - Test	-	350 mA
Lens Type	Domed	Flat, Domed
Lumens/Watt @ Current - Test	-	96 - 116 lm/W
Luminous Flux @ Current/Temperature	122 lm	122 - 126 lm
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Viewing Angle	110 °	110 - 120 °
Voltage - Forward (Vf) (Typ)	2.9 V	2.9 V

LED MOD XLAMP WHT STARBRD 2700K

Part	Current - Test	Temperature - Test	Configuration	Viewing Angle	Lens Type	CCT (K)	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	CRI (Color Rendering Index)	Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature
New Energy XQEAWT-H0-0000-00000HBE8-SB01	350 mA	85 °C	Starboard	120 °	Flat	2700 K	19.89 mm	2.9 V	Warm, White	1 A	80	LED Module	96 lm/W
New Energy XQEAWT-H0-0000-00000HDE8-SB01	350 mA	85 °C	Starboard	120 °	Flat	2700 K	19.89 mm	2.9 V	Warm, White	1 A	80	LED Module
New Energy XQEAWT-00-0000-00000BFE1-SB01		85 °C	Starboard	110 °	Domed	6500 K	19.89 mm	2.9 V	White, Cool, White, Warm	1 A	70	LED Module		122 lm
New Energy XQEAWT-00-0000-00000HDE5-SB01	350 mA	85 °C	Starboard	110 °	Domed	4000 K	19.89 mm	2.9 V	Neutral, White	1 A	75	LED Module	116 lm/W
New Energy XQEAWT-H0-0000-00000LEE5-SB01	350 mA	85 °C	Starboard	120 °	Flat	4000 K	19.89 mm	2.9 V	Neutral, White	1 A	80	LED Module	109 lm/W
New Energy XQEAWT-00-0000-00000HBE8-SB01	350 mA	85 °C	Starboard	110 °	Domed	2700 K	19.89 mm	2.9 V	Warm, White	1 A	80	LED Module	109 lm/W
New Energy XQEAWT-H0-0000-00000BFE1-SB01	350 mA	85 °C	Starboard	120 °	Flat	6500 K	19.89 mm	2.9 V	Cool, White	1 A	70	LED Module		126 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module XLamp® XQ-E White, Warm / White, Cool Starboard
