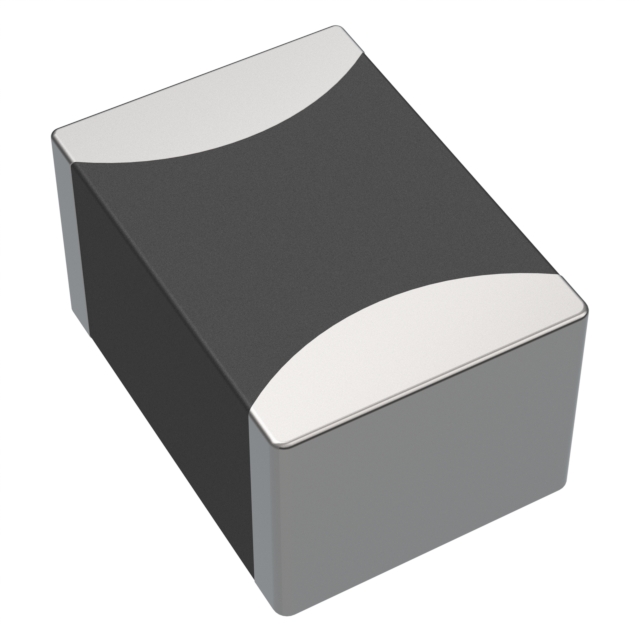

MLV1812E32503T

Active

Vishay Beyschlag/Draloric/BC Components

VARISTOR 800A 1812

Search across all available documentation for this part.

Active

Vishay Beyschlag/Draloric/BC Components

VARISTOR 800A 1812

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

800 A Varistor 1 Circuit Surface Mount, MLCV 1812 (4532 Metric)

Technical documentation and resources

Part	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Capacitance @ Frequency	Energy	Maximum DC Volts [Max]	Package / Case	Current - Surge	Mounting Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max)
Vishay Beyschlag/Draloric/BC Components MLV1812E33003T	42.3 V	51.7 V	30 V	2000 pF	4.2 J	38 V	1812 (4532 Metric)	800 A	Surface Mount, MLCV	1	85 C	-55 C
Vishay Beyschlag/Draloric/BC Components MLV1812E39503T
Vishay Beyschlag/Draloric/BC Components MLV1812E31403T	21.6 V	26 V	14 V	4500 pF	2.3 J	18 V	1812 (4532 Metric)	800 A	Surface Mount, MLCV	1	85 C	-55 C
Vishay Beyschlag/Draloric/BC Components MLV1812E32003T	31 V	38 V	20 V	3000 pF	3 J	26 V	1812 (4532 Metric)	800 A	Surface Mount, MLCV	1	85 C	-55 C
Vishay Beyschlag/Draloric/BC Components MLV1812E31703T			17 V	4000 pF	2.7 J	22 V	1812 (4532 Metric)	800 A	Surface Mount, MLCV	1	85 C	-55 C	29.7 V
Vishay Beyschlag/Draloric/BC Components MLV1812E32503T	37 V	46 V	25 V	2500 pF	3.7 J	30 V	1812 (4532 Metric)	800 A	Surface Mount, MLCV	1	85 C	-55 C
