F9460PCSQ-12(6)

Active

3M (TC)

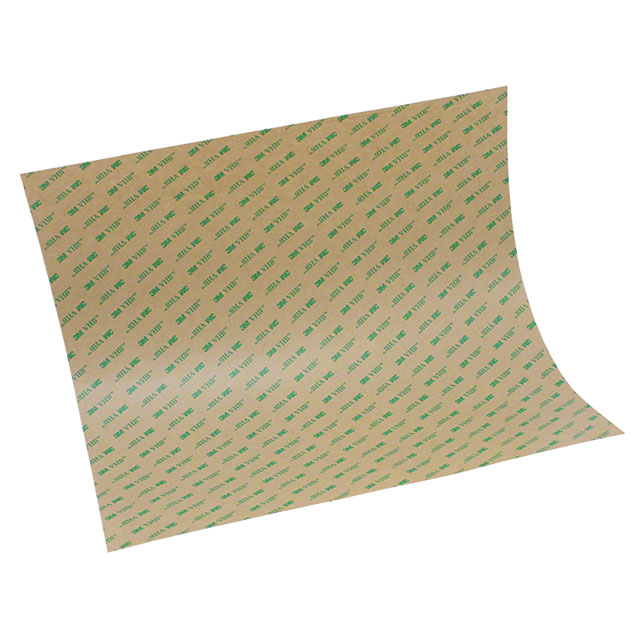

TAPE ADHSV TRNSFR CLR 12"X12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

F9460PCSQ-12(6)

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 12"X12"

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F9460PCSQ-12(6)

Adhesive	Acrylic, 100MP
Backing, Carrier	Polycoated Kraft Liner
Color	Clear
Length	12 "
Length	304.8 mm
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Adhesive Transfer
Temperature Range	300 °F
Temperature Range	149 °C
Thickness	0.006 in
Thickness	0.152 mm
Thickness	6 mils
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier	0.102 mm
Thickness - Backing, Carrier	4 mils
Thickness - Backing, Carrier	0.004 in
Usage	High Temperature Applications, Attachment
Width [x]	304.8 mm
Width [x]	12 in

F9460PC Series

...

Part	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range	Temperature Range	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Shelf Life Start	Adhesive	Shelf Life	Width	Width	Width	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Tape Type	Thickness	Thickness	Thickness	Usage	Width	Width [x]	Width [x]
3M (TC) F9460PC-0.25-60	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months	0.25 in	0.25 in	6.35 mm	Clear	16 °C 60 °F	27 °C 80 °F	60 yds	55 m	180 ft	Adhesive Transfer	0.006 in	0.152 mm	6 mils
3M (TC) 3M F9460PC 4.72" X 60YD	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months		4.72 in	120 mm	Clear	16 °C 60 °F	27 °C 80 °F	60 yds	55 m	180 ft	Adhesive Transfer	0.006 in	0.152 mm	6 mils
3M (TC) F9460PC-0.75-60	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months	19.05 mm	0.75 in	0.75 in	Clear	16 °C 60 °F	27 °C 80 °F	60 yds	55 m	180 ft	Adhesive Transfer	0.006 in	0.152 mm	6 mils
3M (TC) 3M F9460PC 0.75" X 9"-100	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months	19.05 mm	0.75 in	0.75 in	Clear	16 °C 60 °F	27 °C 80 °F		228.6 mm	9 "	Adhesive Transfer	0.006 in	0.152 mm	6 mils
3M (TC) F9460PCSQ-1.5(100)	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months		1.5 "	38.1 mm	Clear	16 °C 60 °F	27 °C 80 °F		38.1 mm	1.5 "	Adhesive Transfer	0.006 in	0.152 mm	6 mils	Attachment High Temperature Applications	1 1/2
3M (TC) F9460PC-0.125-60	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months	0.125 "	0.13 in	3.18 mm	Clear	16 °C 60 °F	27 °C 80 °F	60 yds	55 m	180 ft	Adhesive Transfer	0.006 in	0.152 mm	6 mils
3M (TC) 3M F9460PC 3" X 1.25"-25	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months				Clear	16 °C 60 °F	27 °C 80 °F		31.75 mm	1.25 in	Adhesive Transfer	0.006 in	0.152 mm	6 mils			76.2 mm	3 in
3M (TC) 3M F9460PC CIRCLE-4.000"-100	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months				Clear	16 °C 60 °F	27 °C 80 °F				Adhesive Transfer	0.006 in	0.152 mm	6 mils
3M (TC) F9460PCSQ-12(6)	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months				Clear	16 °C 60 °F	27 °C 80 °F		304.8 mm	12 "	Adhesive Transfer	0.006 in	0.152 mm	6 mils	Attachment High Temperature Applications		304.8 mm	12 in
3M (TC) F9460PC-0.375-60	0.102 mm	4 mils	0.004 in	149 °C	300 °F	Polycoated Kraft Liner	2 mils	0.051 mm	0.002 "	Date of Manufacture	Acrylic 100MP	24 Months	0.375 in	0.38 in	9.65 mm	Clear	16 °C 60 °F	27 °C 80 °F	60 yds	55 m	180 ft	Adhesive Transfer	0.006 in	0.152 mm	6 mils

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.26
		12	$ 10.77
		30	$ 9.79
		54	$ 9.30
		102	$ 8.81
		252	$ 8.32
		504	$ 7.83
		1002	$ 7.35

Description

General part information

F9460PC Series

Adhesive Transfer Tape Acrylic, 100MP Adhesive Clear 12.00" (304.80mm) X 12.00" (304.80mm)

Documents

Technical documentation and resources
