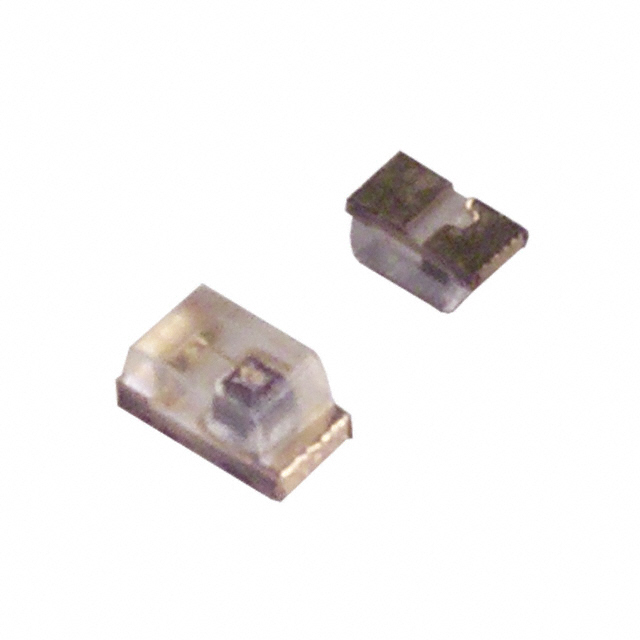

SML-LX0402UPGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR 0402 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX0402UPGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN CLEAR 0402 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.36
		10	$ 0.86
		100	$ 0.64
		500	$ 0.58
		1000	$ 0.48
	Digi-Reel®	1	$ 1.36
		10	$ 0.86
		100	$ 0.64
		500	$ 0.58
		1000	$ 0.48
	Tape & Reel (TR)	2000	$ 0.46
		6000	$ 0.45
		10000	$ 0.44

Description

General part information

SML-LX0402 Series

Green LED Indication - Discrete 3.5V 0402 (1005 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX0402UPGC-TR	SML-LX0402 Series

Color	Green	Yellow, Blue, Red, Green
Configuration	Standard	Standard, Independent
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	0.7 mm	0.5 - 0.7 mm
Lens Color	Colorless	Colorless
Lens Size [x]	0.8 mm	0.8 - 1 mm
Lens Size [y]	0.5 mm	0.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	110 mcd	10 - 140 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0402 (1005 Metric)	0402 (1005 Metric)
Size / Dimension [x]	1 mm	1 mm
Size / Dimension [y]	0.55 mm	0.5 - 0.55 mm
Supplier Device Package	0402 (1005 Metric)	0402 (1005 Metric)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.5 V	2 - 3.5 V
Wavelength - Peak	525 nm	463 - 650 nm

SML-LX0402 Series

LED YELLOW CLEAR SMD

Part	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Wavelength - Peak	Viewing Angle	Package / Case	Mounting Type	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test	Millicandela Rating	Color	Configuration	Lens Style	Lens Color	Supplier Device Package
Lumex Opto/Components Inc. SML-LX0402SYC-TR	0.5 mm	0.8 mm	1 mm	0.5 mm	0.5 mm	590 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	2 V	20 mA	60 mcd	Yellow	Standard	Rectangle with Flat Top	Colorless
Lumex Opto/Components Inc. SML-LX0402USBC-TR	0.5 mm	0.8 mm	1 mm	0.5 mm	0.5 mm	463 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	3.3 V	20 mA	60 mcd	Blue	Standard	Rectangle with Flat Top	Colorless
Lumex Opto/Components Inc. SML-LX0402SIC-TR	0.5 mm	0.8 mm	1 mm	0.5 mm	0.5 mm	636 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	2 V	20 mA	140 mcd	Red	Standard	Rectangle with Flat Top	Colorless
Lumex Opto/Components Inc. SML-LX0402UPGC-TR	0.5 mm	0.8 mm	1 mm	0.55 mm	0.7 mm	525 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	3.5 V	20 mA	110 mcd	Green	Standard	Rectangle with Flat Top	Colorless	0402 (1005 Metric)
Lumex Opto/Components Inc. SML-LX0402DRC-TR	0.5 mm	1 mm	1 mm	0.5 mm	0.5 mm	650 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	2 V	20 mA	25 mcd	Red	Independent	Rectangle with Flat Top	Colorless
Lumex Opto/Components Inc. SML-LX0402GC-TR	0.5 mm	0.8 mm	1 mm	0.5 mm	0.52 mm	565 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	2.2 V	20 mA	10 mcd	Green	Standard	Rectangle with Flat Top	Colorless
Lumex Opto/Components Inc. SML-LX0402SUGC-TR	0.5 mm	0.8 mm	1 mm	0.5 mm	0.5 mm		120 °	0402 (1005 Metric)	Surface Mount	Clear	2.2 V	20 mA	45 mcd	Green	Standard	Rectangle with Flat Top	Colorless
Lumex Opto/Components Inc. SML-LX0402SOC-TR	0.5 mm	0.8 mm	1 mm	0.5 mm	0.5 mm	610 nm	120 °	0402 (1005 Metric)	Surface Mount	Clear	2 V	20 mA	120 mcd		Standard	Rectangle with Flat Top	Colorless
