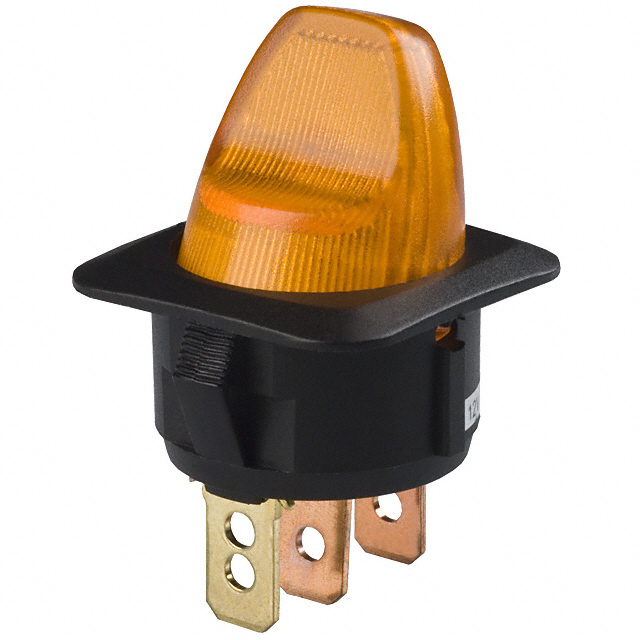

CLS-TS11A12250Y
ActiveLumex Opto/Components Inc.
SWITCH TOGGLE SPST 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLS-TS11A12250Y
ActiveLumex Opto/Components Inc.
SWITCH TOGGLE SPST 25A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CLS-TS11A12250Y | CLS-TS11 Series |
|---|---|---|
| Actuator Length [x] | 17 mm | 17 mm |
| Actuator Type | Flatted | Flatted |
| Circuit | SPST | SPST |
| Current Rating (Amps) | 25 A | 25 A |
| Illumination | Illuminated | Illuminated |
| Illumination Type, Color | LED, Yellow | LED, Yellow, Green, Blue, Red |
| Illumination Voltage (Nominal) | 12 VDC | 12 VDC |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [diameter] | 24 mm | 24 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V | 12 V |
CLS-TS11 Series
SWITCH TOGGLE SPST 25A 12V
| Part | Actuator Length [x] | Illumination Type, Color | Illumination | Circuit | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions [diameter] | Actuator Type | Mounting Type | Current Rating (Amps) | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. CLS-TS11A12250Y | 17 mm | LED, Yellow | Illuminated | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | 24 mm | Flatted | Panel Mount, Snap-In | 25 A | On-Off | 12 V |
Lumex Opto/Components Inc. CLS-TS11A12250G | 17 mm | Green, LED | Illuminated | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | 24 mm | Flatted | Panel Mount, Snap-In | 25 A | On-Off | 12 V |
Lumex Opto/Components Inc. CLS-TS11A12250B | 17 mm | Blue, LED | Illuminated | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | 24 mm | Flatted | Panel Mount, Snap-In | 25 A | On-Off | 12 V |
Lumex Opto/Components Inc. CLS-TS11A12250R | 17 mm | LED, Red | Illuminated | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | 24 mm | Flatted | Panel Mount, Snap-In | 25 A | On-Off | 12 V |
