FGP.2M.319.XLCM
ActiveLEMO

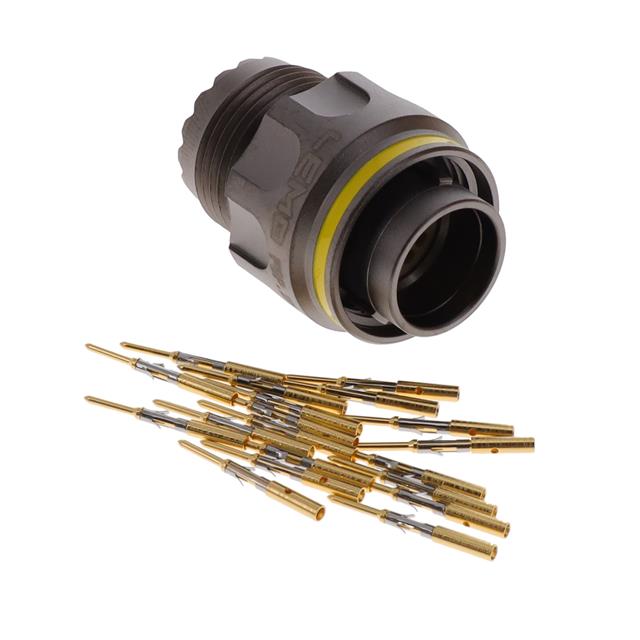

CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FGP.2M.319.XLCM
ActiveLEMO
CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FGP.2M.319.XLCM | FGP.2M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Cable Opening | - | 0.512 in |
| Cable Opening | - | 13 mm |
| Color | Gray | Gray |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 4 A | 4 - 7 A |
| Features | Coupling Nut | Coupling Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 19 | 12 - 19 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | P | P |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 319 | 312 - 319 |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
FGP.2M Series
CONN PLUG MALE 19POS GOLD CRIMP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Termination | Number of Positions | Primary Material | Applications | Current Rating (Amps) | Mounting Type | Contact Finish - Mating | Orientation | Insert Material | Shell Finish | Features | Connector Type | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shell Size - Insert | Shell Material | Contact Material | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FGP.2M.319.XLCM | 1 µm | 39.4 µin | Gray | Crimp | 19 | Metal | Aerospace, Automotive, Aviation, Military | 4 A | Free Hanging (In-Line) | Gold | P | Polyetheretherketone (PEEK) | Nickel | Coupling Nut | Male Pins, Plug | Shielded | -55 °C | 200 °C | IP68 - Dust Tight, Waterproof | 319 | Aluminum Alloy | Brass | ||
LEMO FGP.2M.319.XLCT | 1 µm | 39.4 µin | Gray | Crimp | 19 | Metal | Aerospace, Automotive, Aviation, Military | 4 A | Free Hanging (In-Line) | Gold | P | Polyetheretherketone (PEEK) | Nickel | Coupling Nut | Male Pins, Plug | Shielded | -55 °C | 200 °C | IP68 - Dust Tight, Waterproof | 319 | Aluminum Alloy | Brass | 0.512 in | 13 mm |
LEMO FGP.2M.312.XLCT | 1 µm | 39.4 µin | Gray | Crimp | 12 | Metal | Aerospace, Automotive, Aviation, Military | 7 A | Free Hanging (In-Line) | Gold | P | Polyetheretherketone (PEEK) | Nickel | Coupling Nut | Male Pins, Plug | Shielded | -55 °C | 200 °C | IP68 - Dust Tight, Waterproof | 312 | Aluminum Alloy | Brass | 0.512 in | 13 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.05 | |
Description
General part information
FGP.2M Series
19 Position Circular Connector Plug, Male Pins Crimp
