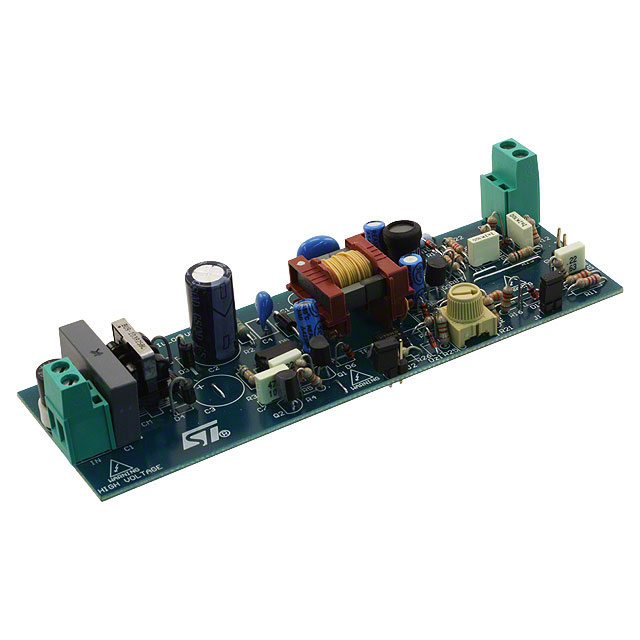

STEVAL-ILL001V1
ObsoleteSTMicroelectronics
EVAL BOARD DIMMABLE HB PWR LED
STEVAL-ILL001V1
ObsoleteSTMicroelectronics
EVAL BOARD DIMMABLE HB PWR LED
Description
General part information
STEVAL-ILL001V1
VIPer22A-E - 1 Isolated Output Dimmable LED Driver Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ILL001V1 |
|---|---|
| Contents | Board |
| Current - Output / Channel | 350 mA |
| Features | Dimmable |
| Isolated Output Count | 1 |
| Output Type | Isolated |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | VIPer22A-E |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 185 VAC |
| Voltage - Output | 32 VDC |
