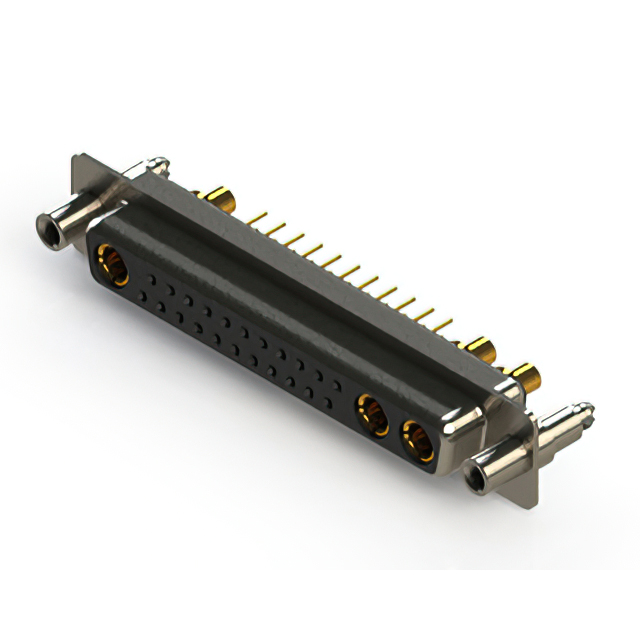

628-25W3224-3TE
ActiveEDAC Inc.
CONN D-SUB RCPT 25POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
628-25W3224-3TE
ActiveEDAC Inc.
CONN D-SUB RCPT 25POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-25W3224-3TE |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 30 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded, Board Lock |
| Flange Feature | M3 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 22 |
| Number of Positions [custom] | 3 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | DC, C - 25W3 |
| Shell Size, Connector Layout [Min] | 4 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628-25W Series
...
| Part | Number of Positions [custom] | Number of Positions [custom] | Number of Rows | Contact Type | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Color | Current Rating (Amps) | Material Flammability Rating | Connector Style | Voltage Rating | Contact Finish | Dielectric Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Shell Size, Connector Layout [Min] | Connector Type | Contact Material | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Termination | Shell Material, Finish | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Shielded | 0.76 Ám | 30 Áin | Board Side (M3) | Black | 5 A 30 A | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Free Hanging (In-Line) | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | ||||||
EDAC Inc. | 2 | Coax Signal | Board Lock Shielded | M3 | Black | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | 25 | 3 | Flash | Solder | |||||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Board Lock Shielded | M3 | Black | 5 A 30 A | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Solder | ||||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Shielded | Housing/Shell (Unthreaded) | Black | 5 A 20 A | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Free Hanging (In-Line) | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Nickel Plated Steel | ||||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Shielded | 4-40 | Black | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Solder | Nickel Plated Steel | 10A 5A | |||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Shielded | 4-40 Board Side | Black | 5 A 20 A | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Solder | Nickel Plated Steel | |||||
EDAC Inc. | 2 | Coax Signal | Shielded | 0.76 Ám | 30 Áin | 4-40 Board Side | Black | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | 25 | 3 | Solder | ||||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Shielded | Housing/Shell (Unthreaded) | Black | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Solder | Nickel Plated Steel | 10A 5A | |||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Board Lock Shielded | Board Side (M3) | Black | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Solder | 10A 5A | ||||||
EDAC Inc. | 22 | 3 | 2 | Signal and Power | Shielded | 4-40 | Black | 5 A 30 A | UL94 V-0 | Combo D-Sub | 125 VDC | Gold | Polyester Thermoplastic | Through Hole | -55 °C | 125 °C | DC C - 25W3 | 4 | Receptacle Female Sockets | Copper Alloy | Flash | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 11.88 | |
Description
General part information
628-25W Series
25 (22 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
