XKN.M22.GLLA
ActiveLEMO

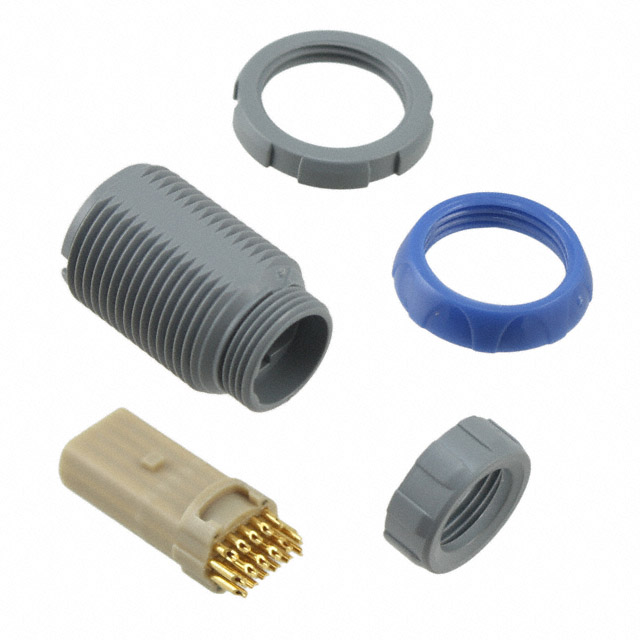

CONN RCPT FMALE 22P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XKN.M22.GLLA
ActiveLEMO
CONN RCPT FMALE 22P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XKN.M22.GLLA | XKN.M22 Series |
|---|---|---|
| Applications | Testing Equipment, Medical, Industrial, Measurement | Testing Equipment, Medical, Industrial, Measurement |
| Color | Gray, Blue | Gray, Blue |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 2 A | 1.2 - 2 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Number of Positions | 22 positions | 22 positions |
| Operating Temperature [Max] | 170 °C | 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | N | N |
| Primary Material | Plastic | Plastic |
| Shell Material | Sulfone | Sulfone |
| Shell Size - Insert | M22 | M22 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
XKN.M22 Series
CONN RCPT FMALE 22POS GOLD CRIMP
| Part | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Applications | Number of Positions | Shell Material | Color | Primary Material | Shielding | Connector Type | Contact Finish - Mating | Current Rating (Amps) | Termination | Shell Size - Insert | Insert Material | Mounting Feature | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO XKN.M22.GLMG | IP50 | -50 °C | 170 °C | N | Industrial, Measurement, Medical, Testing Equipment | 22 positions | Sulfone | Gray | Plastic | Unshielded | Receptacle, Female Sockets | Gold | 1.2 A | Crimp | M22 | Polyetheretherketone (PEEK) | Front and Rear Side Nut | Push-Pull |
LEMO XKN.M22.GLLA | IP50 | -50 °C | 170 °C | N | Industrial, Measurement, Medical, Testing Equipment | 22 positions | Sulfone | Blue, Gray | Plastic | Unshielded | Receptacle, Female Sockets | Gold | 2 A | M22 | Polyetheretherketone (PEEK) | Front and Rear Side Nut | Push-Pull | |
LEMO XKN.M22.GLLG | IP50 | -50 °C | 170 °C | N | Industrial, Measurement, Medical, Testing Equipment | 22 positions | Sulfone | Gray | Plastic | Unshielded | Receptacle, Female Sockets | Gold | 2 A | M22 | Polyetheretherketone (PEEK) | Front and Rear Side Nut | Push-Pull |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XKN.M22 Series
22 Position Circular Connector Receptacle, Female Sockets Solder Cup
