Specification	0395931202

Color	Green
Contact Material	Brass
Current	10 A
Features	Interlocking (Side), Positions Stamped
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation (Angle)	45 °
Mating Orientation (Angle) (Alternate)	135 °
Mating Orientation (Description)	Angle with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Plating	Tin Plated
Positions Per Level	2
Screw Material	Steel
Torque - Screw	0.34 Nm
Voltage	300 V
Wire Gauge (AWG) (Max)	24 AWG
Wire Gauge (AWG) (Min)	14 AWG
Wire Termination	Rising Cage Clamp, Screw

039593 Series

...

Part	Torque - Screw	Contact Material	Plating	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Clamp Material - Plating	Screw Material	Wire Termination	Number of Levels	Color	Voltage	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Current	Mating Orientation	Pitch	Mounting Type	Positions Per Level	Features	Mating Orientation (Angle)	Mating Orientation (Description)	Mating Orientation (Angle) (Alternate)	Contact Material - Plating

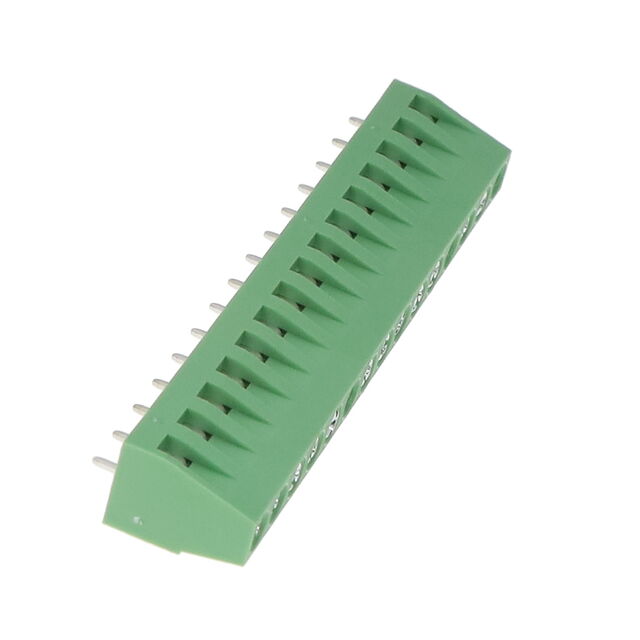

Molex 0395933015	0.51 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	Brass	Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	22 AWG	15 A	Horizontal with Board	0.197 in	Through Hole	15
Molex 0395932218	0.34 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C		Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	24 AWG	10 A		0.197 in	Through Hole	18	Interlocking (Side) Positions Stamped	45 °	Angle with Board	135 °
Molex 0395938305	0.34 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	Brass	Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	22 AWG	10 A		0.197 in	Through Hole	5	Positions Stamped	45 °	Angle with Board	135 °
Molex 0395930613	0.34 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	Brass	Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	22 AWG	10 A	Horizontal with Board	0.197 in	Through Hole	13
Molex 0395934321	0.34 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	Brass	Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	22 AWG	10 A		0.197 in	Through Hole	21		45 °	Angle with Board	135 °
Molex 0395936320	0.34 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	Brass	Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	22 AWG	10 A		0.197 in	Through Hole	20	Positions Stamped	45 °	Angle with Board	135 °
Molex 0395934503	0.4 Nm	Brass	Tin-Lead Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C	Brass	Steel	Rising Cage Clamp Screw	1	Green	300 V	16 AWG	24 AWG	10 A	Vertical with Board	0.197 in	Through Hole	3	Interlocking (Side)
Molex 0395930019	0.34 Nm			Nylon 6/6 PA66 Polyamide	-40 °C	105 °C		Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	24 AWG	10 A	Horizontal with Board	0.197 in	Through Hole	19					Brass
Molex 0395932011	0.34 Nm			Nylon 6/6 PA66 Polyamide	-40 °C	105 °C		Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	24 AWG	10 A	Horizontal with Board	0.197 in	Through Hole	11	Positions Stamped				Brass
Molex 0395930214	0.34 Nm	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C		Steel	Rising Cage Clamp Screw	1	Green	300 V	14 AWG	24 AWG	10 A		0.197 in	Through Hole	14	Interlocking (Side)	45 °	Angle with Board	135 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0395931202 | Datasheet
