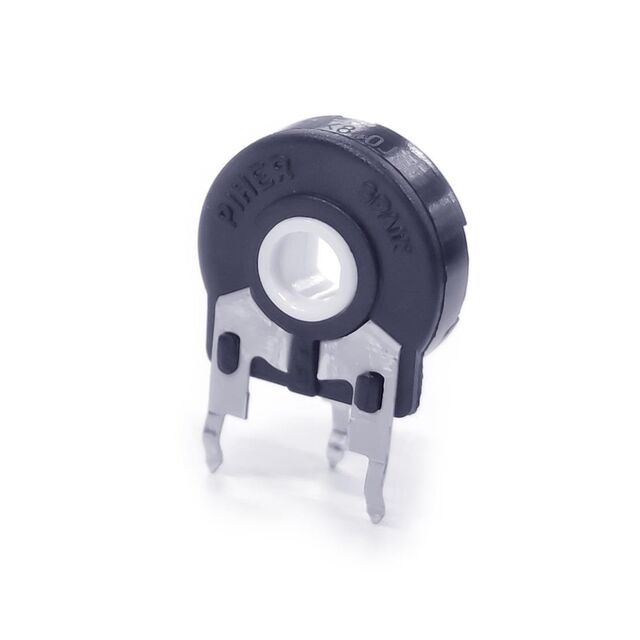

PT15GH10-225A1010-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 2.2M OHM 0.25W PC PIN
PT15GH10-225A1010-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 2.2M OHM 0.25W PC PIN
Description
General part information
PT15GH10-225A1010-E-PM-S
2.2 MOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | PT15GH10-225A1010-E-PM-S |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 2.2 MOhm |
| Resistive Material | Carbon |
| Size / Dimension Diameter | 0.591 in |
| Size / Dimension Shape | Round |
| Termination Style | PC Pins |
| Tolerance | 10 % |
