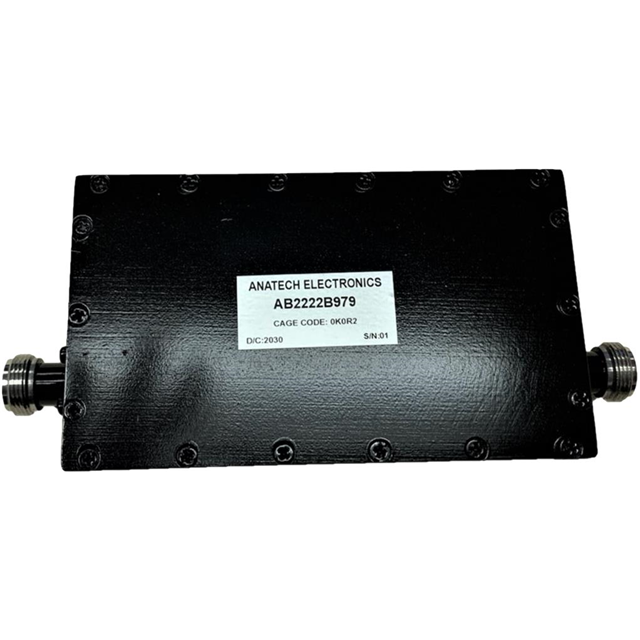

AB2222B979
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 2.222GHZ MOD
AB2222B979
ActiveAnatech Electronics Inc.
RF FILTER BAND PASS 2.222GHZ MOD
Description
General part information
AB2222B979
2.222GHz Center Frequency Band Pass RF Filter (Radio Frequency) 22MHz Bandwidth 2dB Module
Technical Specifications
Parameters and characteristics for this part
| Specification | AB2222B979 |
|---|---|
| Bandwidth | 22 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.222 GHz |
| Height (Max) | 1.24 in |
| Insertion Loss | 2 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension Length | 4.843 in |
| Size / Dimension Width | 2.795 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
