ECG.1B.316.CLV
ActiveLEMO
CONN RCPT FMALE 16POS GOLD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECG.1B.316.CLV
ActiveLEMO
CONN RCPT FMALE 16POS GOLD SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ECG.1B.316.CLV | ECG.1B Series |
|---|---|---|
| Color | Silver | Black, Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 1.5 A | 1.5 - 15 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Front and Rear Side Nut | Front and Rear Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 2 - 14 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 316 | 302 - 316 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder, Crimp |
ECG.1B Series
CONN RCPT FMALE 6POS GOLD SOLDER
| Part | Shell Size - Insert | Color | Material Flammability Rating | Primary Material | Current Rating (Amps) | Contact Finish - Mating | Ingress Protection | Fastening Type | Insert Material | Shielding | Mounting Type | Connector Type | Orientation | Shell Material | Termination | Contact Material | Number of Positions | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ECG.1B.306.KLN | 306 | Black | UL94 V-0 | Metal | 7 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | 6 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | ||
LEMO ECG.1B.316.CLV | 316 | Silver | UL94 V-0 | Metal | 1.5 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Right Angle, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | 16 | |
LEMO ECG.1B.314.CLN | 314 | Silver | UL94 V-0 | Metal | 2 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | 14 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | |
LEMO ECG.1B.304.CLV | 304 | Silver | UL94 V-0 | Metal | 6 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Right Angle, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | 4 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | |
LEMO ECG.1B.307.KLL | 307 | Black | UL94 V-0 | Metal | 7 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Receptacle, Female Sockets | G | Brass | Bronze | 7 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | ||||
LEMO ECG.1B.310.CLN | 310 | Silver | UL94 V-0 | Metal | 2.5 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | 10 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | |
LEMO ECG.1B.316.CLN | 316 | Silver | UL94 V-0 | Metal | 1.5 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | 16 | |
LEMO ECG.1B.306.CLN | 306 | Silver | UL94 V-0 | Metal | 7 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | 6 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | |
LEMO ECG.1B.302.CYM | 302 | Silver | UL94 V-0 | Metal | 15 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Receptacle, Female Sockets | G | Brass | Crimp | Bronze | 2 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome | ||
LEMO ECG.1B.306.CLV | 306 | Silver | UL94 V-0 | Metal | 6 A | Gold | IP50 | Push-Pull | Polyetheretherketone (PEEK) | Shielded | Panel Mount, Right Angle, Through Hole | Receptacle, Female Sockets | G | Brass | Solder | Bronze | 6 | Front and Rear Side Nut | 59 Áin | 1.5 Ám | -55 °C | 250 °C | Chrome |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.53 | |
| 10 | $ 77.57 | |||
| 25 | $ 74.58 | |||
| 50 | $ 72.10 | |||
| 100 | $ 68.12 | |||
Description
General part information
ECG.1B Series

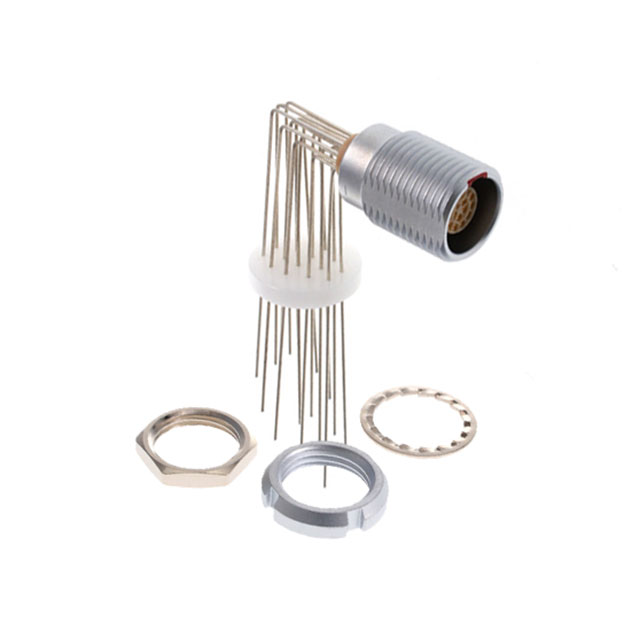

16 Position Circular Connector Receptacle, Female Sockets Solder
