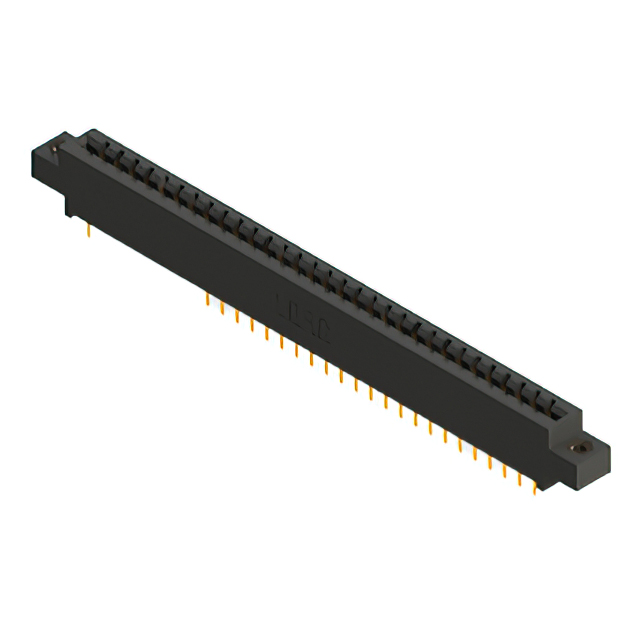

387-062-520-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-062-520-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-062-520-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-062 Series
...
| Part | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Contact Type | Flange Feature | Contact Finish | Number of Rows | Contact Material | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Termination | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Termination Rows | Gender | Color | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Wire Wrap | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black | |||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | Side Mount Opening Unthreaded | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black | 3.25 mm | 0.128 in | |
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black | |||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Wire Wrap | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 2 | Female | Black | 3.25 mm | 0.128 in | ||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | M3 Threaded Insert Top Mount Opening | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 2 | Female | Black | Card Extender | ||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | Side Mount Opening Unthreaded | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 2 | Female | Black | 3.25 mm | 0.128 in | Card Extender |
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | M3 Threaded Insert Top Mount Opening | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black | |||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black | 3.25 mm | 0.128 in | ||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black | |||
EDAC Inc. | Polyester Thermoplastic | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Cantilever | 4-40 Threaded Insert Top Mount Opening | Gold | 2 | Copper Alloy | Dual | 10 Áin | 0.25 Ám | 31 | Non Specified - Dual Edge | Solder | 62 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2 | Female | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
