MLCCAUTO-1
UnknownKnowles Syfer

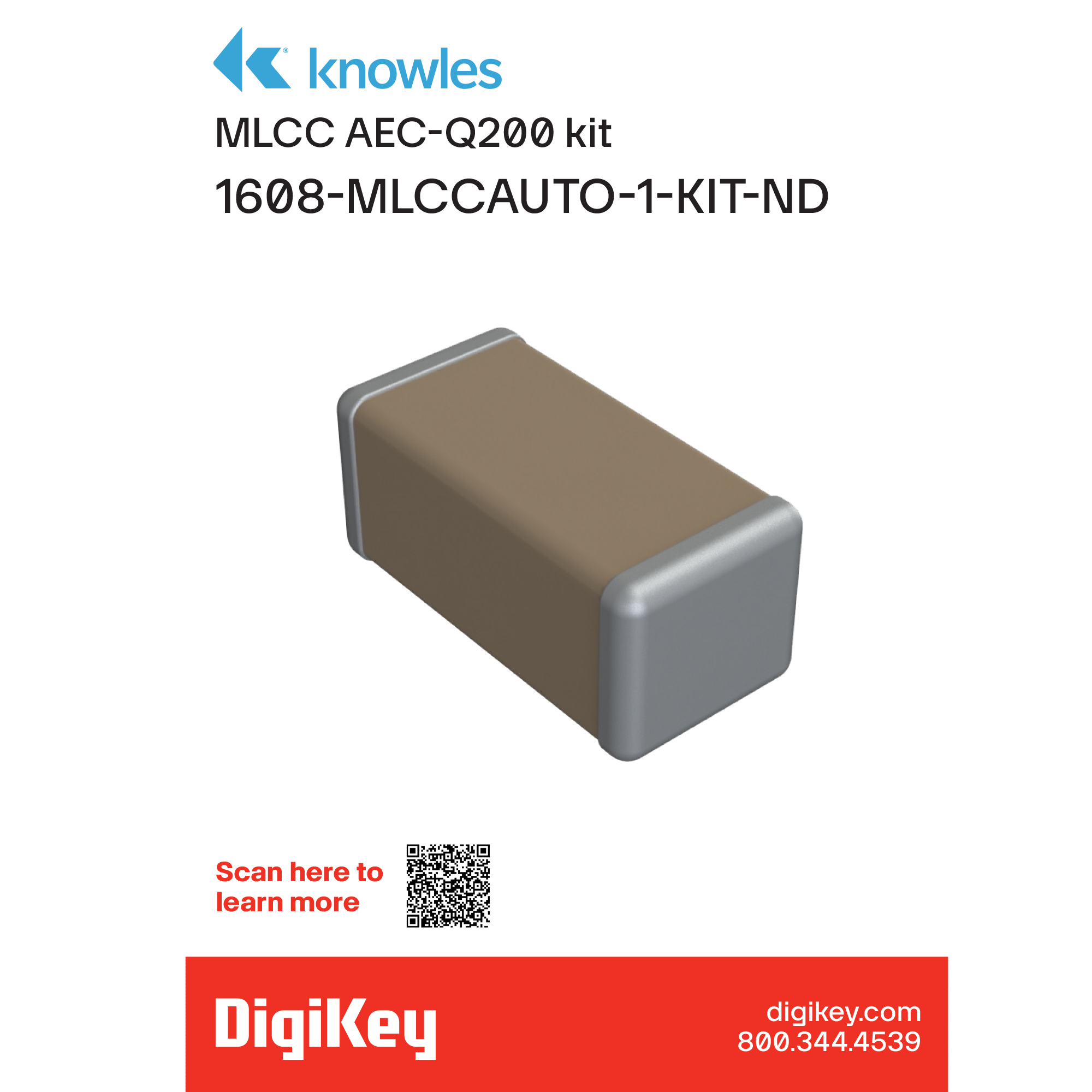

MLCC AEC-Q200 KIT
MLCCAUTO-1
UnknownKnowles Syfer
MLCC AEC-Q200 KIT
Description
General part information
MLCCAUTO-1
Ceramic Capacitor Kit 100pF ~ 1µF 500 ~ 3000V (3kV) Surface Mount, MLCC 100 Pieces (20 Values - 5 Each)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLCCAUTO-1 |
|---|---|
| Applications | Automotive, Boardflex Sensitive |
| Capacitance Range (Max) | 1 µF |
| Capacitance Range (Min) | 100 pF |
| Features | High Voltage, Soft Termination |
| Kit Type | Ceramic |
| Mounting Type | Surface Mount, MLCC |
| Packages Included | 0805 ~ 2225 (2012 ~ 5763 Metric) |
| Quantity | 100 pcs |
| Quantity per Value | 5 Each |
| Quantity Values | 20 Values |
| Tolerance | ±5%, ±10%, ±20% |
| Tolerance | 10 %, 5 %, 20 % |
| Voltage - Rated (Max) | 3000 V |
| Voltage - Rated (Min) | 500 V |
