Description
General part information

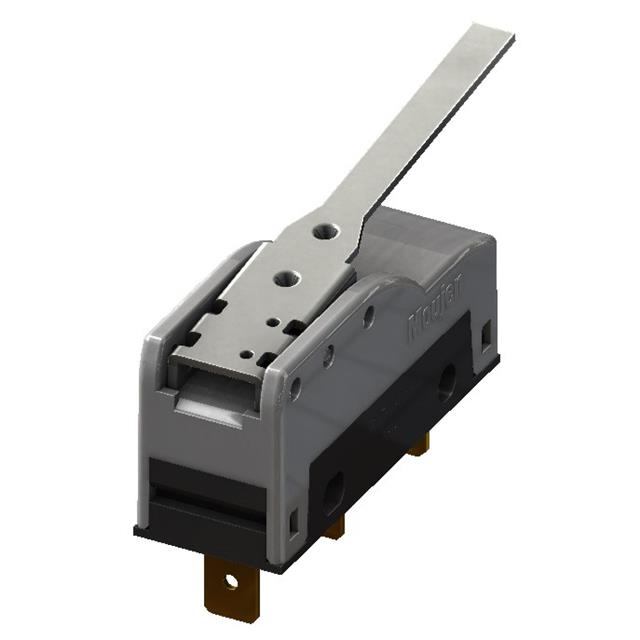

MJ3-522107
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MJ3-522107 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating | 400 mA, 5 A |
| Differential Travel (Linear) | 0.035 in |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 76 gf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.327 in |
| Pretravel (Length) | 0.303 in |
| Quick Connect Size (0.250") | 0.25 in |
| Release Force | 58 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
