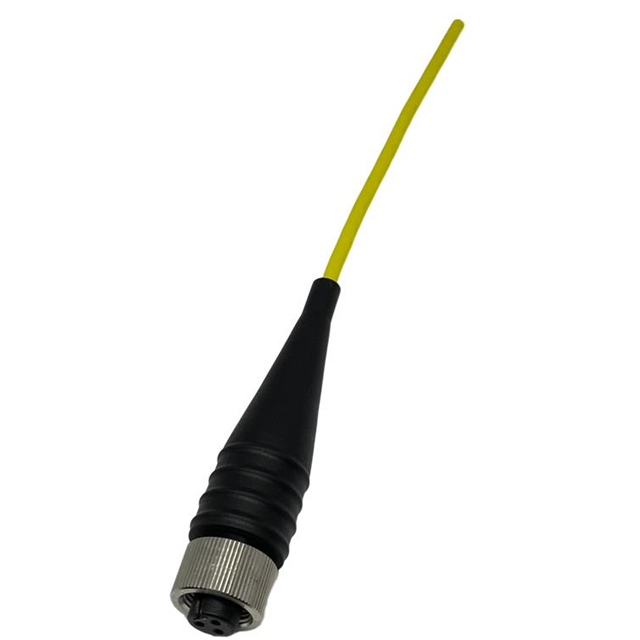

CMCP603H-16-01-01

Active

STI Vibration Monitoring

CBL CIRC 3POS FMALE TO WIRE 16'

Search across all available documentation for this part.

Active

STI Vibration Monitoring

CBL CIRC 3POS FMALE TO WIRE 16'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMCP603H-16-01-01	CMCP603H Series

1st Connector Gender	Female Sockets	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	3	3
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Type	Plug	Plug
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)
Cable Type	Round	Round
Color	Yellow	Yellow
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Length	4.88 m	4.88 m
Length	16 '	16 '
Length	-	9.75 - 19.5 m
Length	-	32 - 64 ft
Shielding	Shielded	Shielded
Usage	Industrial Environments	Industrial Environments

CIRC CBL 3POS PLUG TO WIRE 16'

Part	Usage	1st Connector Number of Positions	2nd Connector Type	1st Connector Type	Ingress Protection	Color	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Shielding	Cable Type	Length	Length	Assembly Configuration	Cable Material	1st Connector Orientation [custom]	1st Connector Gender	Length [x]	Length [x]
STI Vibration Monitoring CMCP603HST-16-01-01	Industrial Environments	3	Wire Leads	Plug	IP68 - Dust Tight, Waterproof	Yellow	All	Free Hanging (In-Line)	Shielded	Round	4.88 m	16 '	Standard	Fluorinated Ethylene-Propylene (FEP)	Keyed	Female Sockets
STI Vibration Monitoring CMCP603H-32-01-01	Industrial Environments	3	Wire Leads	Plug	IP68 - Dust Tight, Waterproof	Yellow	All	Free Hanging (In-Line)	Shielded	Round			Standard	Fluorinated Ethylene-Propylene (FEP)	Keyed	Female Sockets	9.75 m	32 ft
STI Vibration Monitoring CMCP603HST-32-01-01	Industrial Environments	3	Wire Leads	Plug	IP68 - Dust Tight, Waterproof	Yellow	All	Free Hanging (In-Line)	Shielded	Round			Standard	Fluorinated Ethylene-Propylene (FEP)	Keyed	Female Sockets	9.75 m	32 ft
STI Vibration Monitoring CMCP603HST-64-01-01	Industrial Environments	3	Wire Leads	Plug	IP68 - Dust Tight, Waterproof	Yellow	All	Free Hanging (In-Line)	Shielded	Round			Standard	Fluorinated Ethylene-Propylene (FEP)	Keyed	Female Sockets	19.5 m	64 ft
STI Vibration Monitoring CMCP603H-16-01-01	Industrial Environments	3	Wire Leads	Plug	IP68 - Dust Tight, Waterproof	Yellow	All	Free Hanging (In-Line)	Shielded	Round	4.88 m	16 '	Standard	Fluorinated Ethylene-Propylene (FEP)	Keyed	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.00

General part information

Cable Assembly 16.00' (4.88m)
