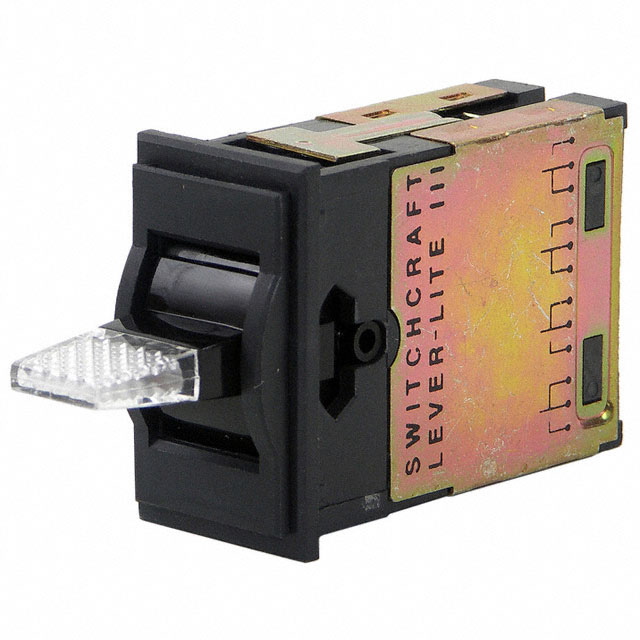

84306LX

Active

Switchcraft Inc.

SWITCH ROCKER 1A 30V

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH ROCKER 1A 30V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROCKER 1A 30V

Part	Actuator Type	Voltage Rating - DC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)
Switchcraft Inc. 84306LX	Paddle - Illuminated	30 V	No Marking	70 °C	-30 ░C	Quick Connect - 0.110" (2.8mm)	Panel Mount, Snap-In	19.05 mm	34.92 mm	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch 1A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
