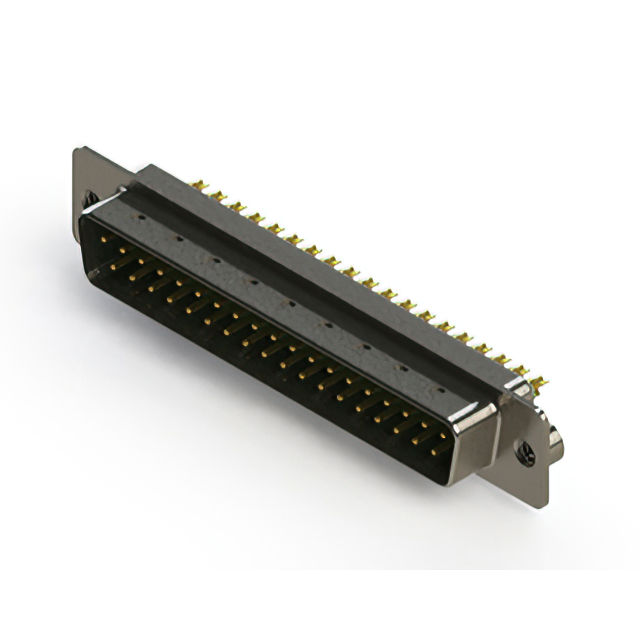

627-M37-322-GN2

Active

EDAC Inc.

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-M37-322-GN2

Active

EDAC Inc.

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-M37-322-GN2

Color	Green
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)

627-M37 Series

...

Part	Features	Contact Finish	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Type	Connector Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Connector Type	Shell Size, Connector Layout	Contact Material	Dielectric Material	Current Rating (Amps)	Shell Material, Finish	Termination	Color	Material Flammability Rating	Contact Finish Thickness
EDAC Inc. 627-M37-623-GN1	Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	Green	UL94 V-0
EDAC Inc. 627-M37-620-LN6	Board Lock Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	Blue	UL94 V-0
EDAC Inc. 627-M37-620-WN5	Board Lock Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	White	UL94 V-0
EDAC Inc. 627-M37-620-BN5	Board Lock Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	Black	UL94 V-0
EDAC Inc. 627-M37-320-BN4	Grounding Indents Shielded	Gold	2	0.38 µm	15 µin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	Black	UL94 V-0
EDAC Inc. 627-M37-220-GT2	Grounding Indents Shielded	Gold	2			Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A		Solder	Green	UL94 V-0	Flash
EDAC Inc. 627-M37-623-BT5	Board Lock Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A		Solder	Black	UL94 V-0
EDAC Inc. 627-M37-620-WN3	Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	White	UL94 V-0
EDAC Inc. 627-M37-623-WN3	Grounding Indents Shielded	Gold	2	0.76 Ám	30 Áin	Through Hole	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel	Solder	White	UL94 V-0
EDAC Inc. 627-M37-322-GN2	Grounding Indents Shielded	Gold	2	0.38 µm	15 µin	Free Hanging (In-Line)	Signal	D-Sub	37	-55 °C	125 °C	4-40 Board Side	Male Pins Plug	4 (DC C)	Copper Alloy	Polyamide (PA6T) Nylon 6T	5 A	Nickel Plated Steel		Green	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 15.00

Description

General part information

627-M37 Series

37 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources
