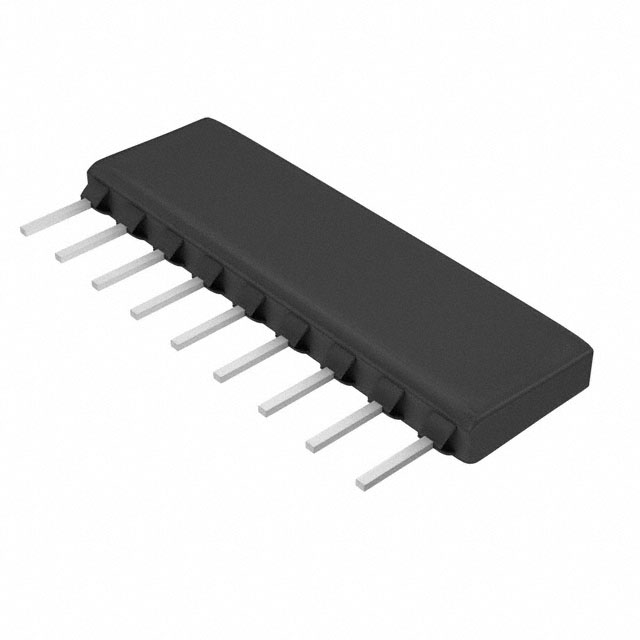

CSC09A01470RGPA
ActiveVishay Dale
RES THICK FILM NET 470 OHM 2% 1.12W ±100PPM/°C BUS CONFORMAL COATED 9-PIN SIP PIN THRU-HOLE BULK
CSC09A01470RGPA
ActiveVishay Dale
RES THICK FILM NET 470 OHM 2% 1.12W ±100PPM/°C BUS CONFORMAL COATED 9-PIN SIP PIN THRU-HOLE BULK
Description
General part information
CSC09A01470RGPA
470 Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
Technical Specifications
Parameters and characteristics for this part
| Specification | CSC09A01470RGPA |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.195 in |
| Mounting Type | Through Hole |
| Number of Pins | 9 |
| Number of Resistors | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 9-SIP |
| Package Name | 9-SIP |
| Power Per Element | 200 mW |
| Resistance | 470 Ohm |
| Resistor Ratio Drift | 50 ppm/°C |
| Size / Dimension Length | 0.89 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
