9618 060100

Active

Belden Inc.

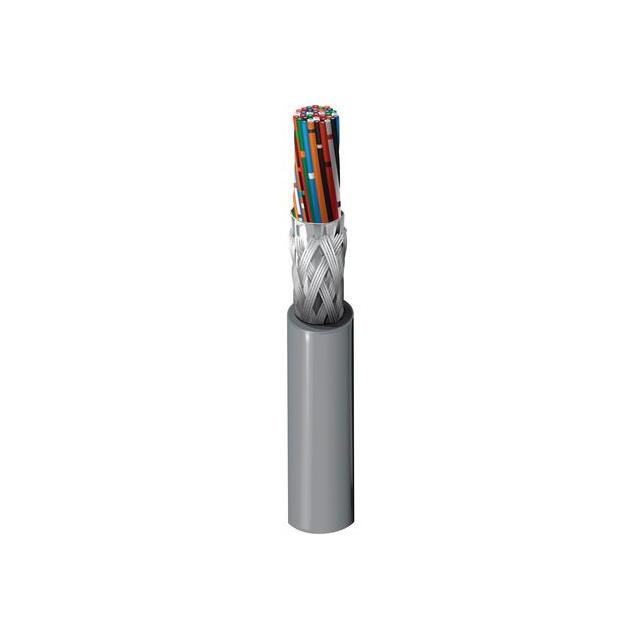

CABLE 37COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 37COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9618 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	10.44 mm
Jacket (Insulation) Diameter [diameter]	0.411 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	37
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Usage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Shield Material	Shield Coverage	Jacket (Insulation) Material	Ratings	Voltage	Cable Type
Belden Inc. 9618 060100	Copper Tinned	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)	Computer	24 AWG	10.44 mm	0.411 in	Chrome	37	0.04 in	1.016 mm	Braid Foil	32 AWG	7	30.5 m	100 ft	Aluminum Copper Tinned	65 % 100 %	Poly-Vinyl Chloride (PVC)	UL Style 2464	300 V	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 37.15

General part information

37 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
