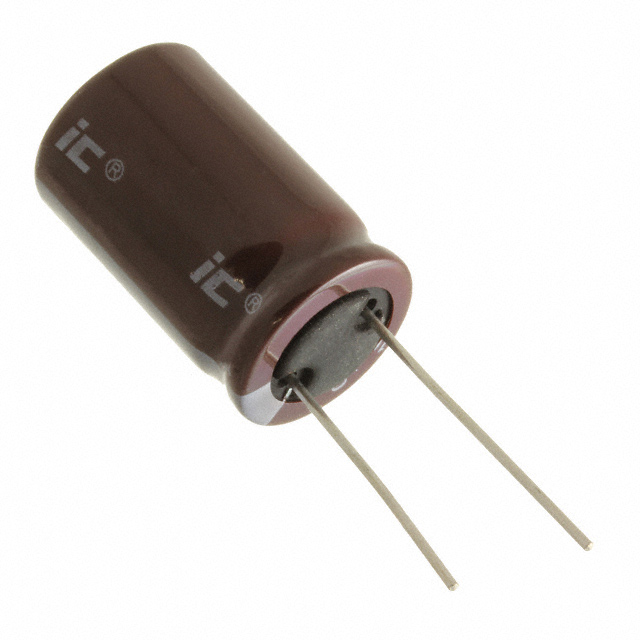

Specification	476CKE200M

Applications	Bypass, Decoupling
Capacitance	47 µF
ESR (Equivalent Series Resistance)	5.291 Ohm
Height - Seated (Max)	0.846 in
Lead Spacing	0.197 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	210 mA, 378 mA
Size / Dimension Diameter	0.492 in
Tolerance	20 %
Voltage - Rated	200 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
