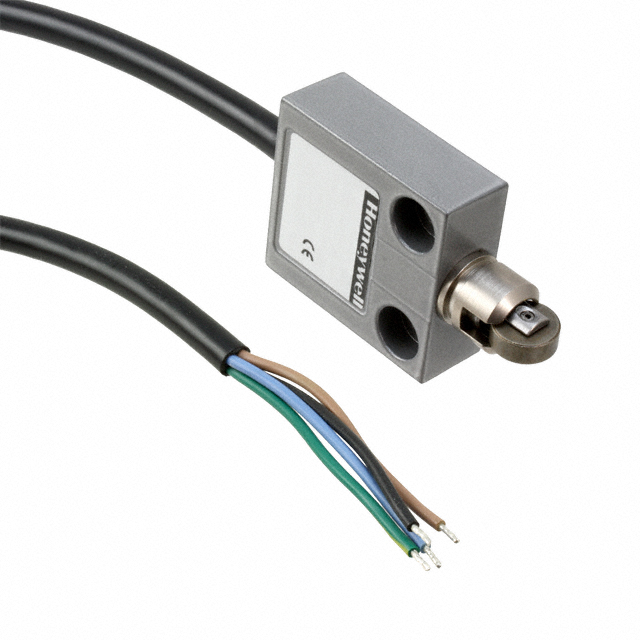

14CE3-3

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 5A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14CE3-3	14CE3 Series

Actuator Type	Roller Plunger	Roller Plunger
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	5 A
Differential Travel	0.1 mm	0.1 mm
Differential Travel	0.004 in	0.004 in
Features	3 m	3 m
Features	-	Cable Length 1m
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP66, IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	1200 gf	1200 - 2300 gf
Operating Position	1.122 in	1.122 in
Operating Position	28.5 mm	28.5 mm
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Overtravel	3 mm	3 mm
Overtravel	0.118 in	0.118 in
Pretravel	0.071 in	0.071 in
Pretravel	1.8 mm	1.8 mm
Release Force	450 gf	450 gf
Switch Function	On-Mom	On-Mom
Termination Style	Cable Leads	Cable Leads
Voltage Rating - AC	250 V	250 V

SWITCH SNAP ACTION SPDT 5A 250V

Part	Voltage Rating - AC	Features	Switch Function	Termination Style	Pretravel	Pretravel	Operating Temperature [Max]	Overtravel	Overtravel	Actuator Type	Differential Travel	Differential Travel	Mounting Type	Current Rating (Amps)	Operating Position	Operating Position	Ingress Protection	Mechanical Life	Release Force	Operating Force	Circuit	Features
Honeywell Sensing and Control EMEA 14CE3-1K	250 V	Cable Length 1m	On-Mom	Cable Leads	0.071 in	1.8 mm	70 °C	3 mm	0.118 in	Roller Plunger	0.1 mm	0.004 in	Chassis Mount	5 A	1.122 in	28.5 mm	IP66	10000000 Cycles	450 gf	2300 gf	SPDT
Honeywell Sensing and Control EMEA 14CE3-3K	250 V		On-Mom	Cable Leads	0.071 in	1.8 mm	70 °C	3 mm	0.118 in	Roller Plunger	0.1 mm	0.004 in	Chassis Mount	5 A	1.122 in	28.5 mm	IP66	10000000 Cycles	450 gf	2300 gf	SPDT	3 m
Honeywell Sensing and Control EMEA 14CE3-3	250 V		On-Mom	Cable Leads	0.071 in	1.8 mm	70 °C	3 mm	0.118 in	Roller Plunger	0.1 mm	0.004 in	Chassis Mount	5 A	1.122 in	28.5 mm	IP65 - Dust Tight, Water Resistant	10000000 Cycles	450 gf	1200 gf	SPDT	3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 126.70

General part information

Switch SPDT Chassis Mount
