CTX33-4P-R
ActiveEaton - Electronics Division
INDUCT ARRAY 2 COIL 33.21UH SMD
CTX33-4P-R
ActiveEaton - Electronics Division
INDUCT ARRAY 2 COIL 33.21UH SMD
Description
General part information

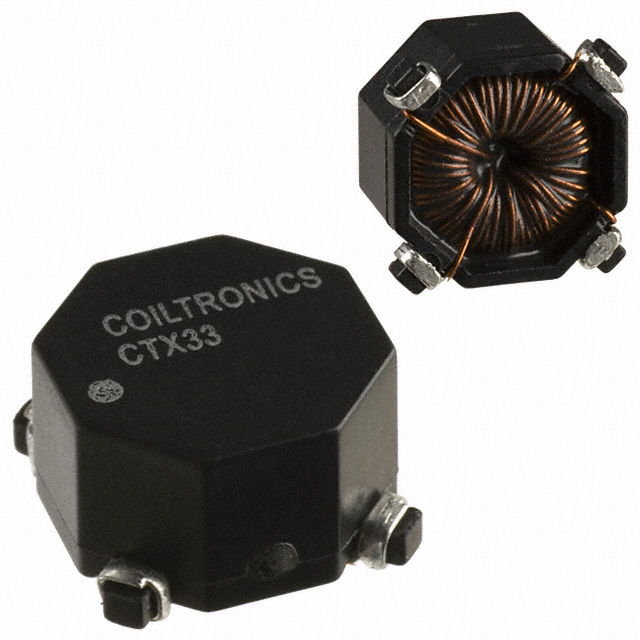

CTX33-4P-R
Unshielded 2 Coil Inductor Array 132.86 µH Inductance - Connected in Series 33.21 µH Inductance - Connected in Parallel 166mOhm Max DC Resistance (DCR) - Parallel 1.3 A Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTX33-4P-R |
|---|---|
| Current Rating - Parallel | 1.3 A |
| Current Rating - Series | 650 mA |
| DC Resistance (DCR) - Parallel (Max) | 166 mOhm |
| DC Resistance (DCR) - Series (Max) | 662 mOhm |
| Height | 0.25 in |
| Inductance - Connected In Parallel | 33.21 µH |
| Inductance - Connected In Series | 132.86 µH |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.55 in |
| Size / Dimension Width | 0.55 in |
| Tolerance | 20 % |
