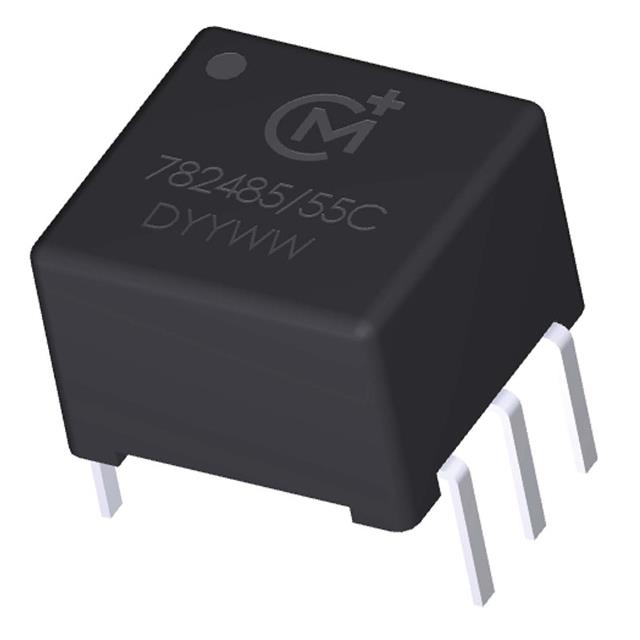

782485/55C

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, ADM2485, TOROIDAL CONVERTER, 200 MA, 2.5 KV, 5V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, ADM2485, TOROIDAL CONVERTER, 200 MA, 2.5 KV, 5V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	782485/55C	782485 Series

	-	-
For Use With/Related Products	ADM2485	ADM2485
Height - Seated (Max) [Max] [z]	0.26 in	0.26 in
Height - Seated (Max) [Max] [z]	6.6 mm	6.6 mm
Inductance	513 µH	234 - 513 µH
Mounting Type	Through Hole	Through Hole
Size / Dimension [x]	9.14 mm	9.14 mm
Size / Dimension [x]	0.36 "	0.36 "
Size / Dimension [y]	9.77 mm	9.77 mm
Size / Dimension [y]	0.385 "	0.385 "
Weight	0.04 oz	0.04 oz
Weight	1.14 g	1.14 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TRANSFORMER, PULSE, 1CT:2.2CT, 234UH

Part	Inductance	For Use With/Related Products	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight
Murata Power Solutions Inc. 782485/35C
Murata Power Solutions Inc. 782485/35C	234 µH	ADM2485	0.26 in	6.6 mm	Through Hole	9.77 mm	9.14 mm	0.36 "	0.385 "	0.04 oz	1.14 g
Murata Power Solutions Inc. 782485/55C
Murata Power Solutions Inc. 782485/55C	513 µH	ADM2485	0.26 in	6.6 mm	Through Hole	9.77 mm	9.14 mm	0.36 "	0.385 "	0.04 oz	1.14 g

General part information

SMPS TRANSFORMER, ADM2485, TOROIDAL CONVERTER, 200 MA, 2.5 KV, 5V
