T50P5NR-F
ActiveCornell Dubilier Knowles
CAP FILM 0.5UF 10% 5KVDC RADIAL
T50P5NR-F
ActiveCornell Dubilier Knowles
CAP FILM 0.5UF 10% 5KVDC RADIAL
Description
General part information
T50P5NR-F

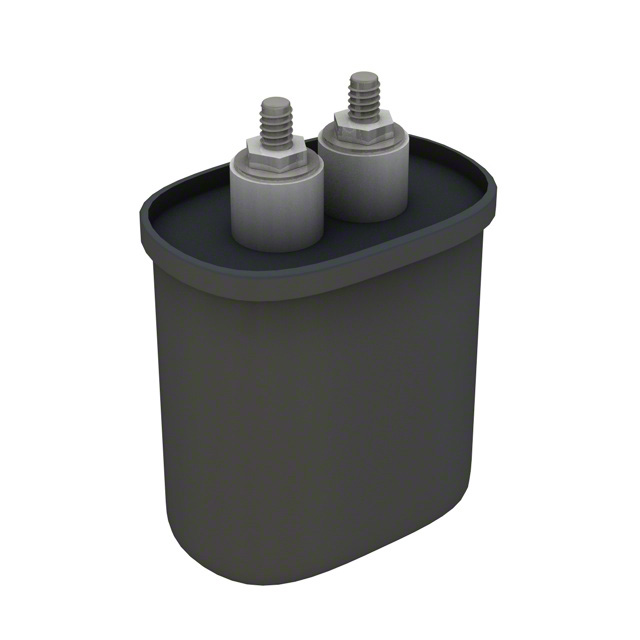

0.5 µF Film Capacitor 5000V (5kV) Paper, Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | T50P5NR-F |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 0.5 µF |
| Dielectric Material | Metallized, Paper |
| Features | High Temperature |
| Height - Seated (Max) | 3.56 in |
| Lead Spacing | 1.38 in |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 2.91 in |
| Size / Dimension Width | 1.91 in |
| Termination | Threaded, Male |
| Tolerance | 10 % |
| Voltage Rating - DC | 5000 V |
