ATS-04E-31-C3-R0

Active

Advanced Thermal Solutions Inc.

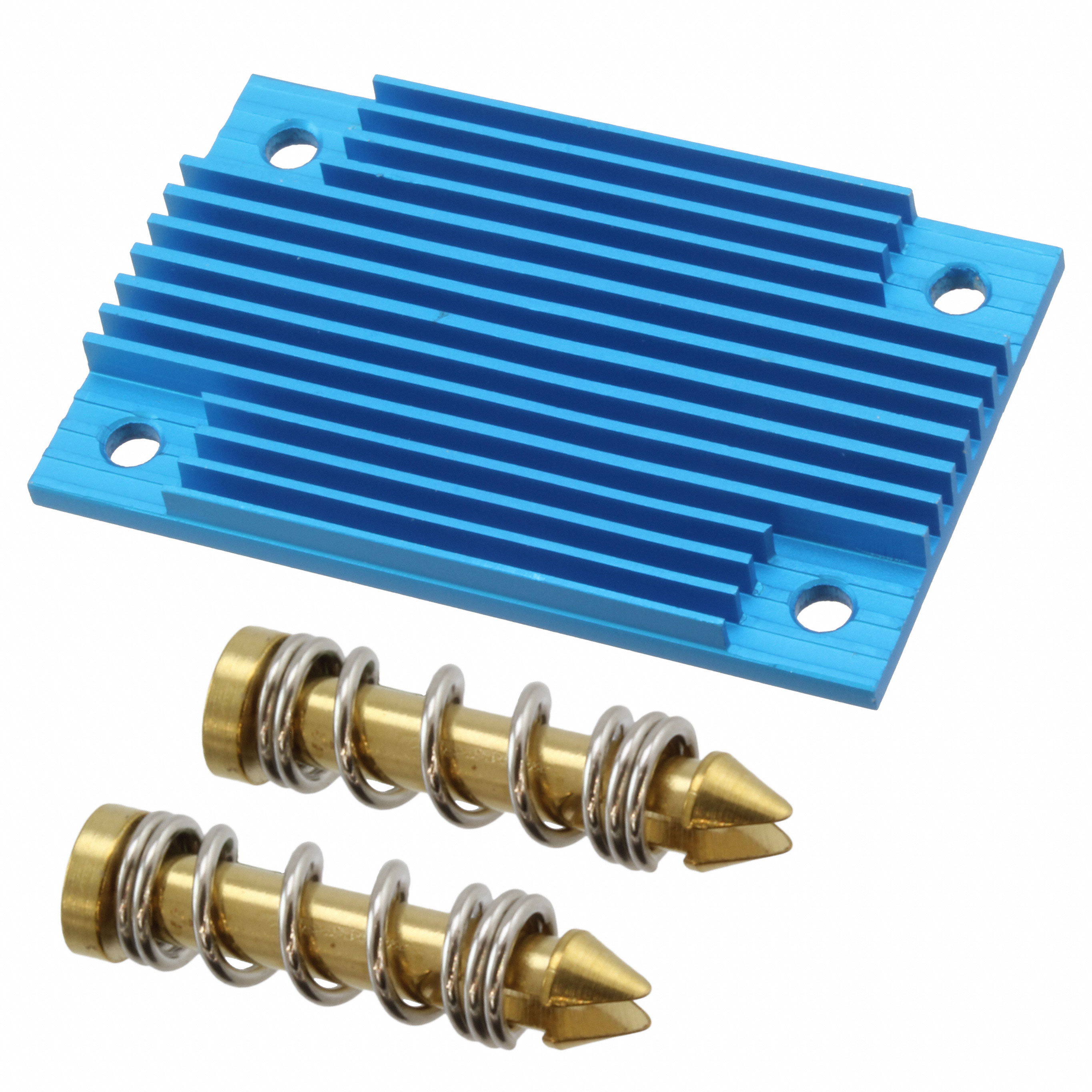

HEATSINK 57.9X36.83X5.84MM T412

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-04E-31-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 57.9X36.83X5.84MM T412

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-04E-31-C3-R0

Attachment Method	Push Pin
Fin Height	0.23 in
Fin Height	5.84 mm
Length	2.28 "
Length	57.9 mm
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	25.33 °C/W
Type	Top Mount
Width	36.83 mm
Width [y]	1.45 "

ATS-04E Series

...

Part	Package Cooled	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Material	Fin Height [z]	Fin Height [z]	Shape	Attachment Method	Width	Width	Type	Material Finish	Length	Width [x]	Fin Height	Fin Height	Width [x]	Length	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-04E-173-C1-R0	ASIC BGA CPU LGA	4.68 °C/W	30 mm	1.181 in	Aluminum	1.181 in	30 mm	Fins Square	Push Pin	30 mm	1.181 in	Top Mount	Blue Anodized
Advanced Thermal Solutions Inc. ATS-04E-120-C1-R0	ASIC BGA CPU LGA	3.45 °C/W		1.772 "	Aluminum			Fins Square	Push Pin	45 mm		Top Mount	Blue Anodized	45 mm	1.772 in	0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-04E-50-C1-R0	ASIC BGA CPU LGA	18.99 °C/W	30 mm	1.181 in	Aluminum			Fins Square	Push Pin	30 mm	1.181 in	Top Mount	Blue Anodized			0.59 "	15 mm
Advanced Thermal Solutions Inc. ATS-04E-02-C1-R0	ASIC BGA CPU LGA				Aluminum	0.5 in	12.7 mm	Fins Square	Push Pin			Top Mount	Blue Anodized		1.575 in			40 mm
Advanced Thermal Solutions Inc. ATS-04E-102-C3-R0	ASIC BGA CPU LGA	5.33 °C/W		1.772 "	Aluminum			Fins Square	Push Pin	45 mm		Top Mount	Blue Anodized	45 mm	1.772 in	1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-04E-100-C3-R0	ASIC BGA CPU LGA	8.79 °C/W		1.772 "	Aluminum			Fins Square	Push Pin	45 mm		Top Mount	Blue Anodized	45 mm	1.772 in	0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-04E-77-C1-R0	ASIC BGA CPU LGA	9.24 °C/W 100 LFM			Aluminum	1.181 in	30 mm	Fins Square	Push Pin	25 mm		Top Mount	Blue Anodized	25 mm	0.984 in				0.984 in
Advanced Thermal Solutions Inc. ATS-04E-39-C1-R0	ASIC BGA CPU LGA	18.93 °C/W			Aluminum			Rectangular Fins	Push Pin			Top Mount	Blue Anodized	57.9 mm		0.23 in	5.84 mm		2.28 "	60.96 mm	2.4 in
Advanced Thermal Solutions Inc. ATS-04E-67-C1-R0	ASIC BGA CPU LGA	20.28 °C/W		1.772 "	Aluminum	0.394 in	10 mm	Fins Square	Push Pin	45 mm		Top Mount	Blue Anodized	45 mm	1.772 in
Advanced Thermal Solutions Inc. ATS-04E-59-C1-R0	ASIC BGA CPU LGA	7.91 °C/W 100 LFM	35 mm	1.378 in	Aluminum	1.181 in	30 mm	Fins Square	Push Pin	35 mm		Top Mount	Blue Anodized		1.378 in
