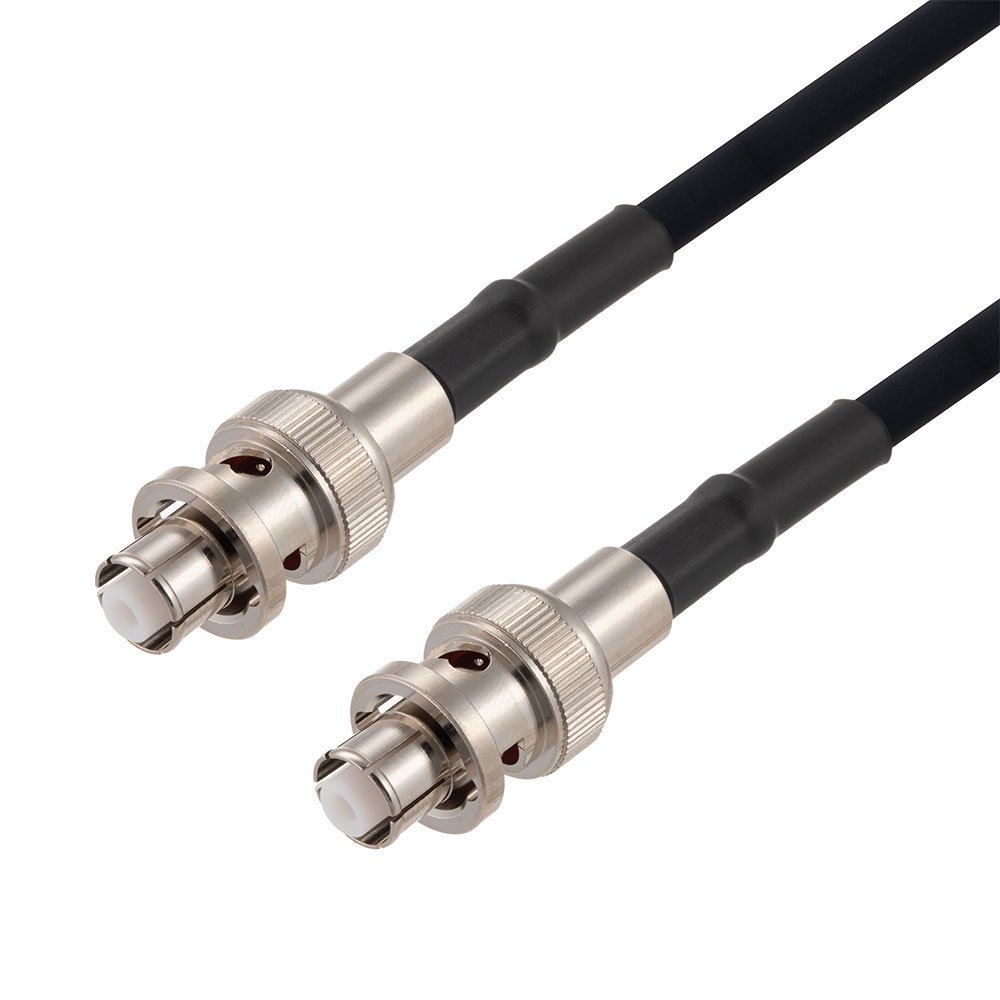

FMCA2780-200CM
ActiveFairview Microwave
CBL ASSY SHVPLUG-SHVPLUG 78.74
FMCA2780-200CM
ActiveFairview Microwave
CBL ASSY SHVPLUG-SHVPLUG 78.74
Description
General part information
FMCA2780-200CM
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2780-200CM |
|---|---|
| 1st Connector | SHV Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SHV Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 300 MHz |
| Length (ft) | 6.6 ft |
| Overall Impedance | 50 Ohms |
| Style | SHV |
