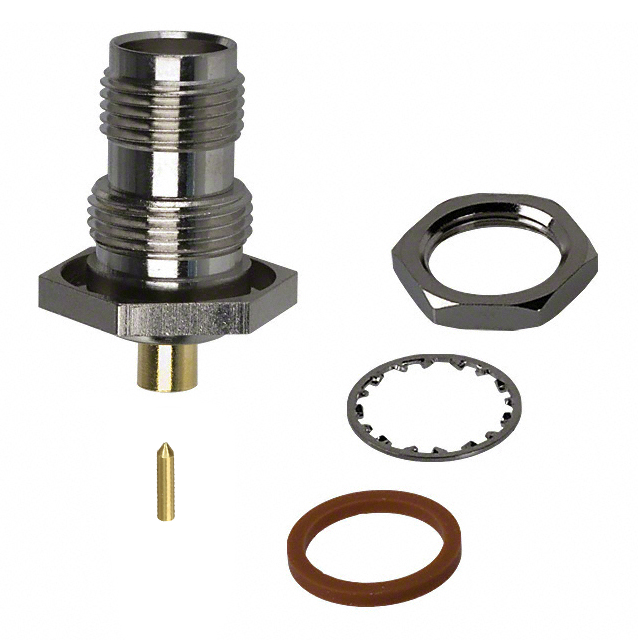

031-6288

Active

AMPHENOL RF

CONN TNC JACK STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-6288

Active

AMPHENOL RF

CONN TNC JACK STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6288	031-62 Series

Body Finish	Nickel	Nickel, Tin
Body Material	Brass	Brass, Zinc Die Cast, Zinc Alloy
Cable Group	Semi Rigid, RG-405	188, 188A, 316, LMR-100, M17/119-RG174, RG-174, Semi Rigid, RG-405, 1.13mm Coaxial Cable
Cable Group [Max]	0.086 in	0.086 in
Cable Group [Min]	0.085 in	0.085 in
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	TNC	RP-TNC, BNC, TNC
Connector Type	Female Socket, Jack	Male Pin, Jack, Female Socket
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	6000 MHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector, 1 Sleeve, 1 Bushing
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	-	Panel Mount, End Launch, Board Edge, Through Hole, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Solder	Crimp, Solder
Voltage Rating	500 V	500 V

031-62 Series

CONN RPTNC JACK STR 50 OHM CRIMP

Part	Body Finish	Voltage Rating	Frequency - Max [Max]	Connector Type	Contact Termination	Center Contact Plating	Mating Cycles	Mounting Feature	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Color	Center Contact Material	Shield Termination	Cable Group	Dielectric Material	Connector Style	Body Material	Includes	Number of Ports	Mounting Type	Fastening Type	Insertion Loss	Cable Group [Min]	Cable Group [Max]
AMPHENOL RF 031-6213	Nickel	500 V	3 GHz	Jack, Male Pin	Crimp, Solder	Gold	500	Bulkhead - Rear Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Polytetrafluoroethylene (PTFE)	RP-TNC	Brass	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	1
AMPHENOL RF 031-6233	Nickel	500 V	3 GHz	Female Socket, Jack	Solder	Gold	500	Bulkhead - Front Side Nut	50 Ohms	165 °C	-65 ░C		Silver	Beryllium Copper	Solder		Polytetrafluoroethylene (PTFE)	BNC	Zinc Die Cast	1 Connector, 1 Lockwasher, 1 Nut	1	Board Edge, End Launch, Panel Mount	Bayonet Lock	0.2 dB
AMPHENOL RF 031-6288	Nickel	500 V	6000 MHz	Female Socket, Jack	Solder	Gold	500	Bulkhead - Front Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Solder	RG-405, Semi Rigid	Polytetrafluoroethylene (PTFE)	TNC	Brass	1 Connector, 1 Contact, 1 Lockwasher, 1 Nut	1				0.085 in	0.086 in
AMPHENOL RF 031-6212	Nickel	500 V	3 GHz	Female Socket, Jack	Crimp, Solder	Gold	500	Bulkhead - Rear Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Crimp	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	Polytetrafluoroethylene (PTFE)	TNC	Brass	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut	1
AMPHENOL RF 031-6219	Nickel	500 V	3 GHz	Jack, Male Pin	Solder	Gold	500	Bulkhead - Rear Side Nut	50 Ohms	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Silver	Phosphor Bronze	Crimp	1.13mm Coaxial Cable	Polytetrafluoroethylene (PTFE)	RP-TNC	Brass	1 Bushing, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut, 1 Sleeve	1
AMPHENOL RF 031-6294	Nickel	500 V	11 GHz	Female Socket, Jack	Solder	Gold	500	Bulkhead - Front Side Nut	50 Ohms	155 °C	-40 °C		Silver	Beryllium Copper	Solder		Polybutylene Terephthalate (PBT), Polytetrafluoroethylene (PTFE)	TNC	Zinc Die Cast		1	Panel Mount, Right Angle, Through Hole
AMPHENOL RF 031-6240-3	Tin	500 V	1 GHz	Jack, Male Pin	Solder	Gold		Bulkhead - Front Side Nut	50 Ohms	165 °C	-65 ░C		Silver	Brass	Solder		Polybutylene Terephthalate (PBT), Polytetrafluoroethylene (PTFE)	RP-TNC	Zinc Alloy		1	Panel Mount, Right Angle, Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.55
		10	$ 31.13
		25	$ 29.78
		50	$ 28.82
		100	$ 27.86
		300	$ 26.32

Description

General part information

031-62 Series

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
