142685-3

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-22AWG 0.197

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 17-22AWG 0.197

Technical Specifications

Parameters and characteristics for this part

Specification	142685-3

Contact Finish	Tin
Contact Material	Phosphor Bronze
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	2 mm
Insulation Diameter [Max] [diameter]	0.079 "
Insulation Diameter [Min] [diameter]	1.3 mm
Insulation Diameter [Min] [diameter]	0.051 in
Length - Overall [x]	0.827 in
Length - Overall [x]	21 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	0.24 "
Tab Length	6.1 mm
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	5 mm
Tab Width	0.197 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17 AWG

CONN QC RCPT 17-22AWG 0.197

Part	Gender	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Termination	Contact Finish	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Insulation	Mounting Type	Tab Width	Tab Width	Contact Material
TE Connectivity AMP Connectors 142685-3	Female	Standard	17 AWG	20 AWG	0.032 in	0.81 mm	Crimp	Tin	1.3 mm	0.051 in	2 mm	0.079 "	0.827 in	21 mm	0.24 "	6.1 mm	Non-Insulated	Free Hanging (In-Line)	5 mm	0.197 in	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

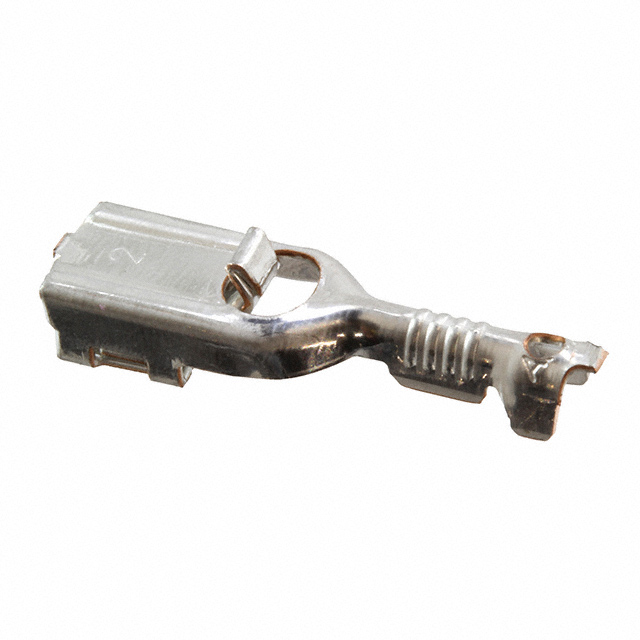

0.197" (5.00mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated
