FMC2122085LF-24
ActiveFairview Microwave
CBL ASSY SMPJACK-SMPJACK 24
FMC2122085LF-24
ActiveFairview Microwave
CBL ASSY SMPJACK-SMPJACK 24
Description
General part information
FMC2122085LF-24

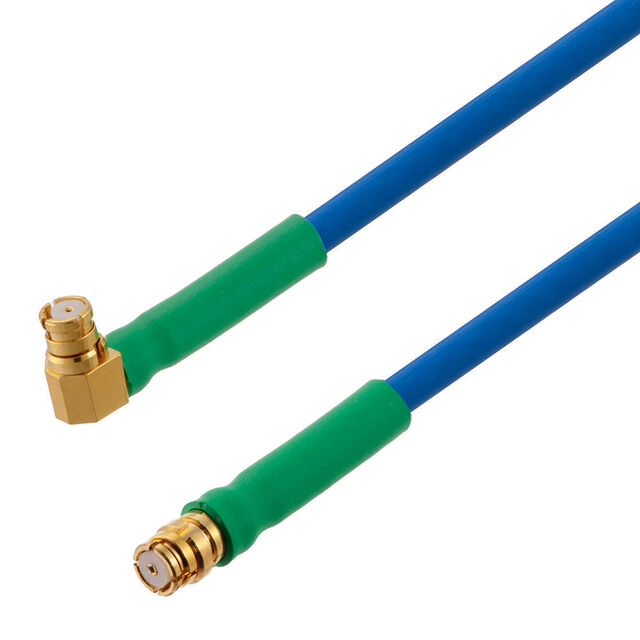

Cable Assembly Coaxial SMP to SMP FM-F086 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC2122085LF-24 |
|---|---|
| 1st Connector | SMP Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | F086, FM |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMP |
